Adjustable Beam Clamp | A-312

$97.00

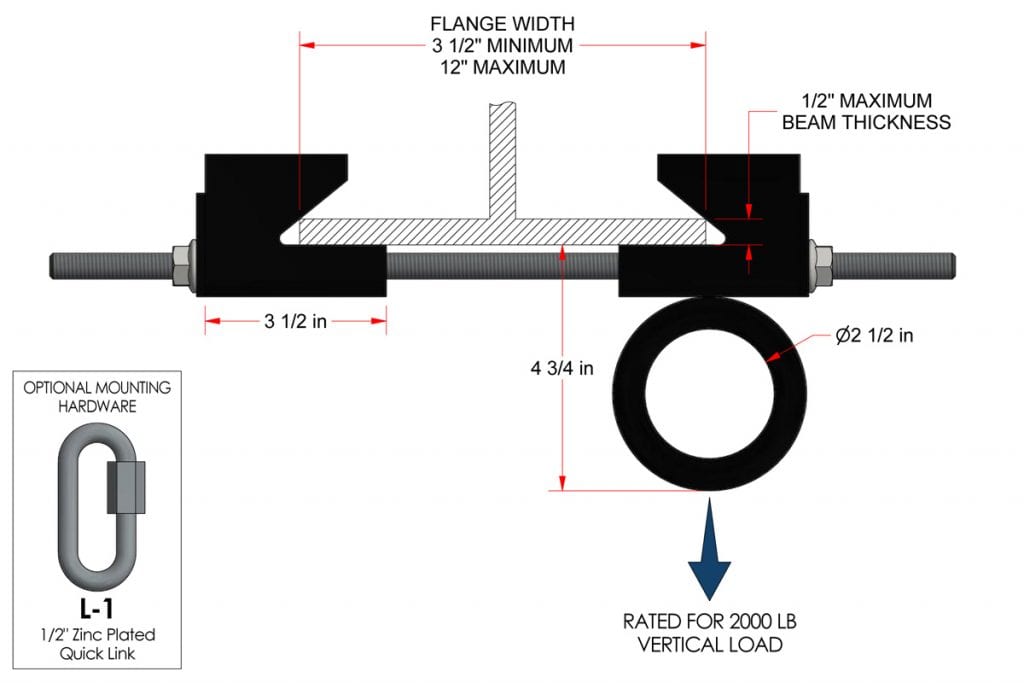

  • Adjusts via 1/2″ threaded rod to fit 3-1/2″ to 12″ wide beam flanges
  • Constructed of heavy gauge steel brackets with a 5/8” OD steel ring

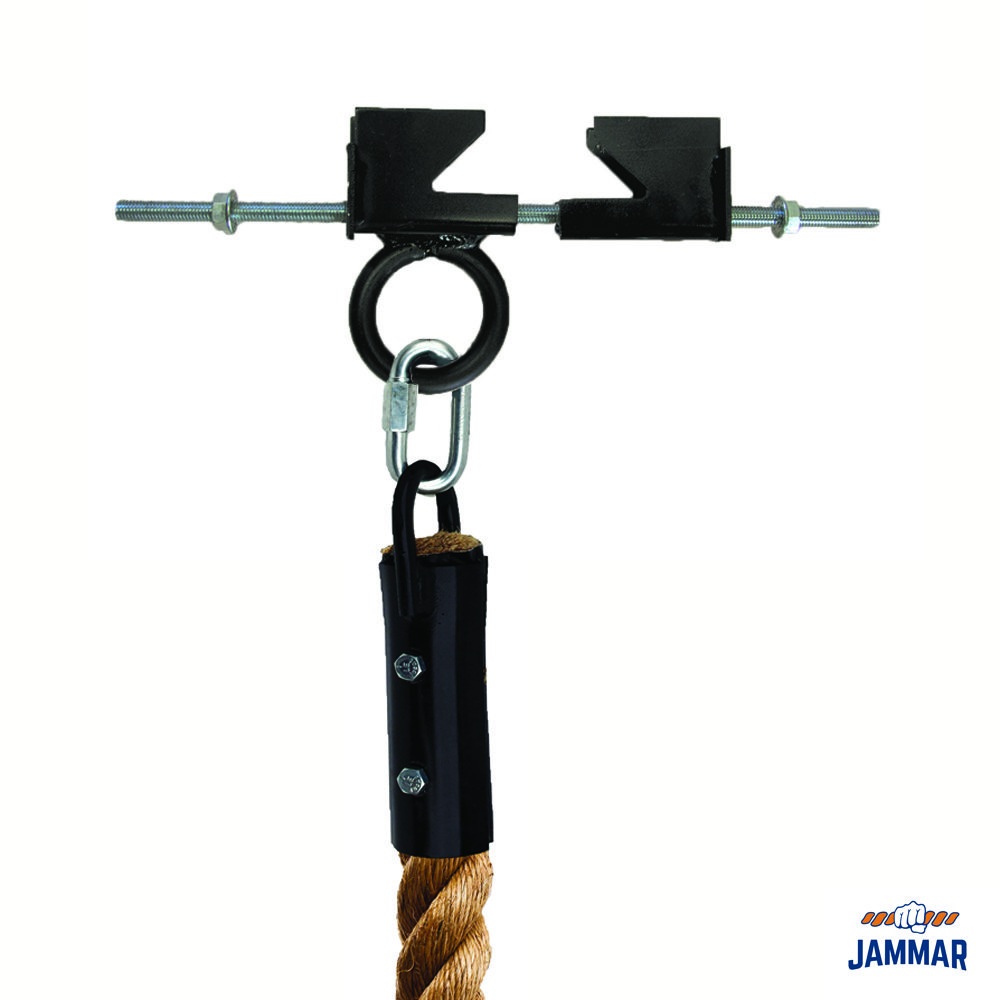

  • Welded ring for easy connection to climbing ropes and net hardware
  • Designed to mount to horizontal beams and withstand vertical loading

Adjustable Beam Clamp | A-312

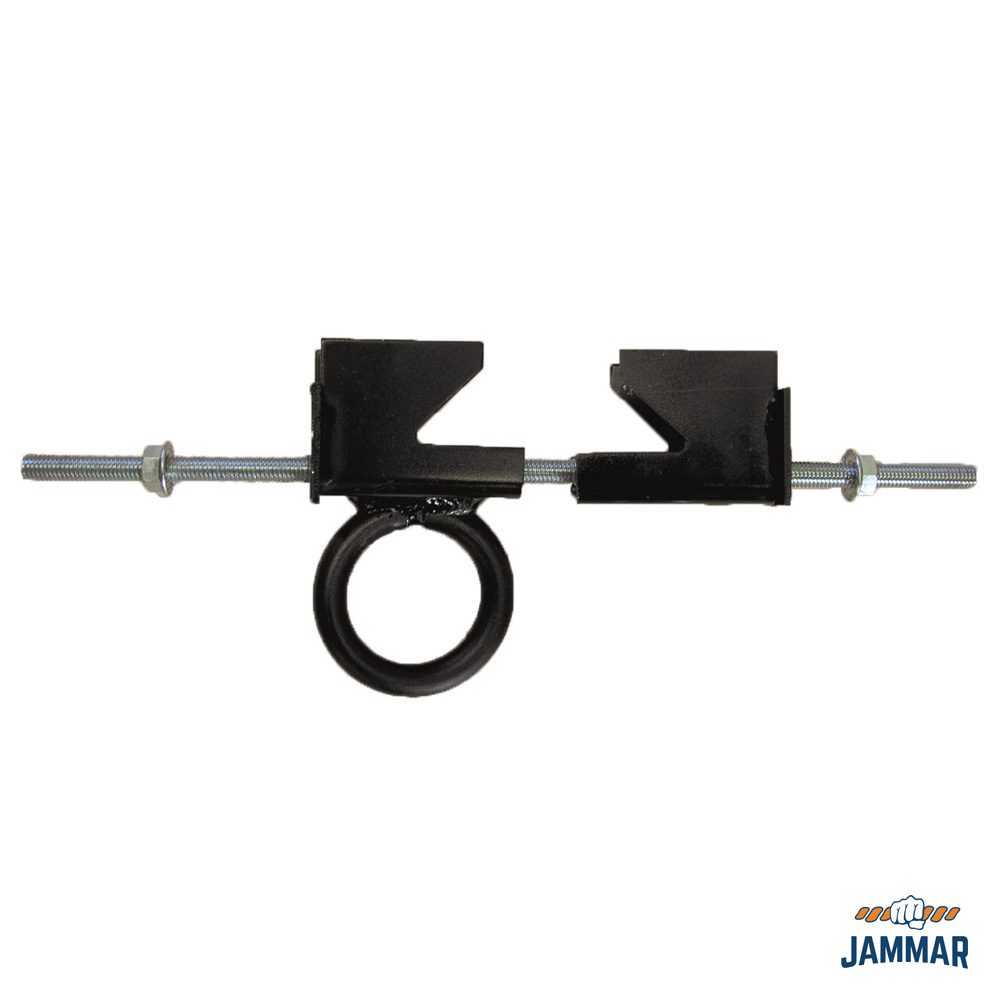

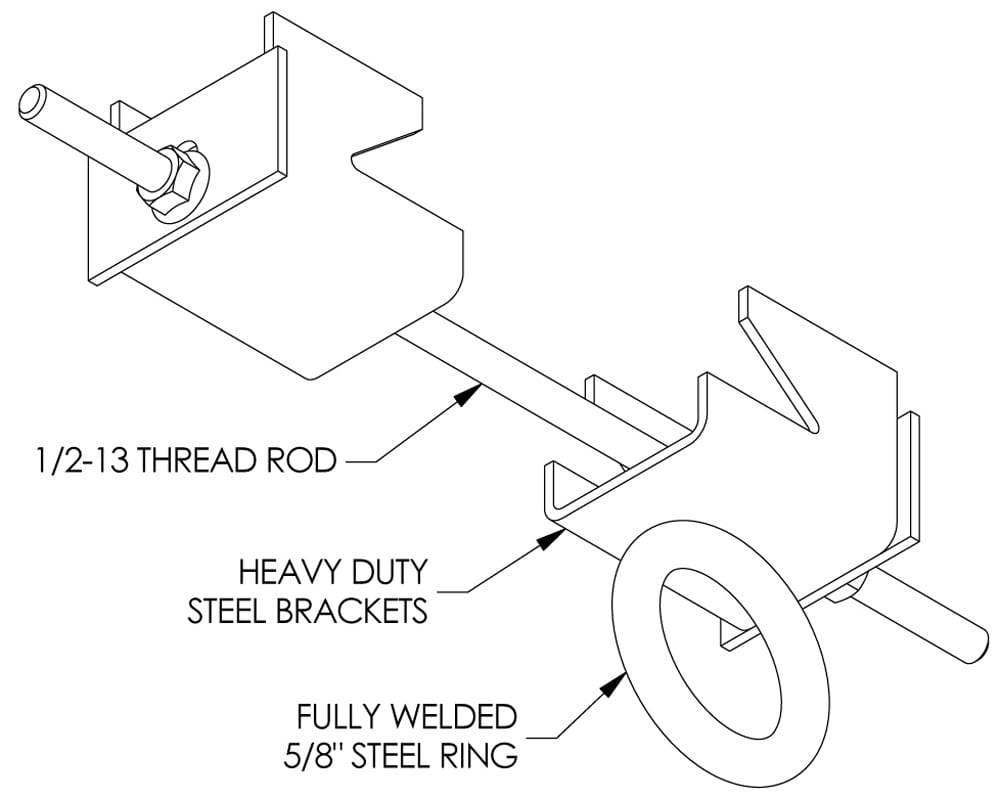

The Adjustable Beam Clamp (A-312) is made of steel with 1/2-13 threaded rod for adjustment, secured and locked into position with serrated flange locknuts. The beam clamp is constructed of heavy gauge steel brackets with a 5/8” OD steel ring to easily connect climbing ropes or nets. Brackets supplied with a durable black powder coat finish.

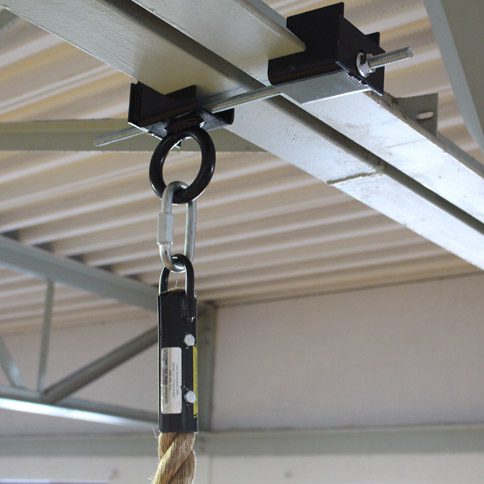

These beam clamps are specifically designed to mount to horizontal beams and withstand vertical loading. These beams clamps are not intended for angled / sloped beams or with any equipment involving swinging. Please refer to the specific net or rope installation for the recommended number of clamps for each specific piece of Jammar equipment.

Climbing ropes and nets must be hung from structurally adequate framework which will exceed any load placed on the equipment. Most beams and ceiling framework in institutional buildings will meet this criteria, however, always confirm this with you architect, building plans, and / or structural engineering. Jammar is not responsible for the structural adequacy of the building structure.

Please note, this beam clamp is not considered a permanent fixture and requires periodic inspection to ensure top performance.

  • Adjusts via 1/2″ threaded rod to fit 3-1/2″ to 12″ wide beam flanges
  • Constructed of heavy gauge steel brackets with a 5/8” OD steel ring
  • Welded ring for easy connection to climbing ropes and net hardware
  • Designed to mount to horizontal beams and withstand vertical loading
View and download: Adjustable Beam Clamp A-312 | Product Specifications
View and download:  Adjustable Beam Clamp A-312 | Installation & Maintenance Manual
View and download:  Climbing Ropes | Price List*
View and download:  Jammar Mfg | 2018 Price List*
*Please contact us with possible discounts.
*Dealer applications available.



Hanging Hardware

Wood Beam Hanger | A-1
Pipe Clamp Hanger | A-2

Pipe Clamp Hanger | A-2

Adjustable Beam Clamp | A-312

Adjustable Beam Clamp | A-312

A-5A-9
Wood Beam Hanger | A-1
Pipe Clamp Hanger | A-2

Pipe Clamp Hanger

Adjustable Beam Clamp | A-312

Adjustable Beam Clamp

Wood Beam Clamp | A-4

Wood Beam Clamp

Concrete Beam Clamp | A-5

Concrete Beam Clamp

Stud Strap Hanger | A-9

Stud Strap Hanger

Climbing Rope Accessories

RN-1MLBH-1SCA-1TMB-20CAS-1CAS-2SIGN-1
Rope Net Hoist | RN-1

Rope Net Hoist

Hoist/Metal Lock Box | MLBH-1

Hoist/Lock Box

TambourineChain Sling AttachmentChain Attachment Sling



GENERAL POLICY

Additional information

Weight 5 lbs
