Description

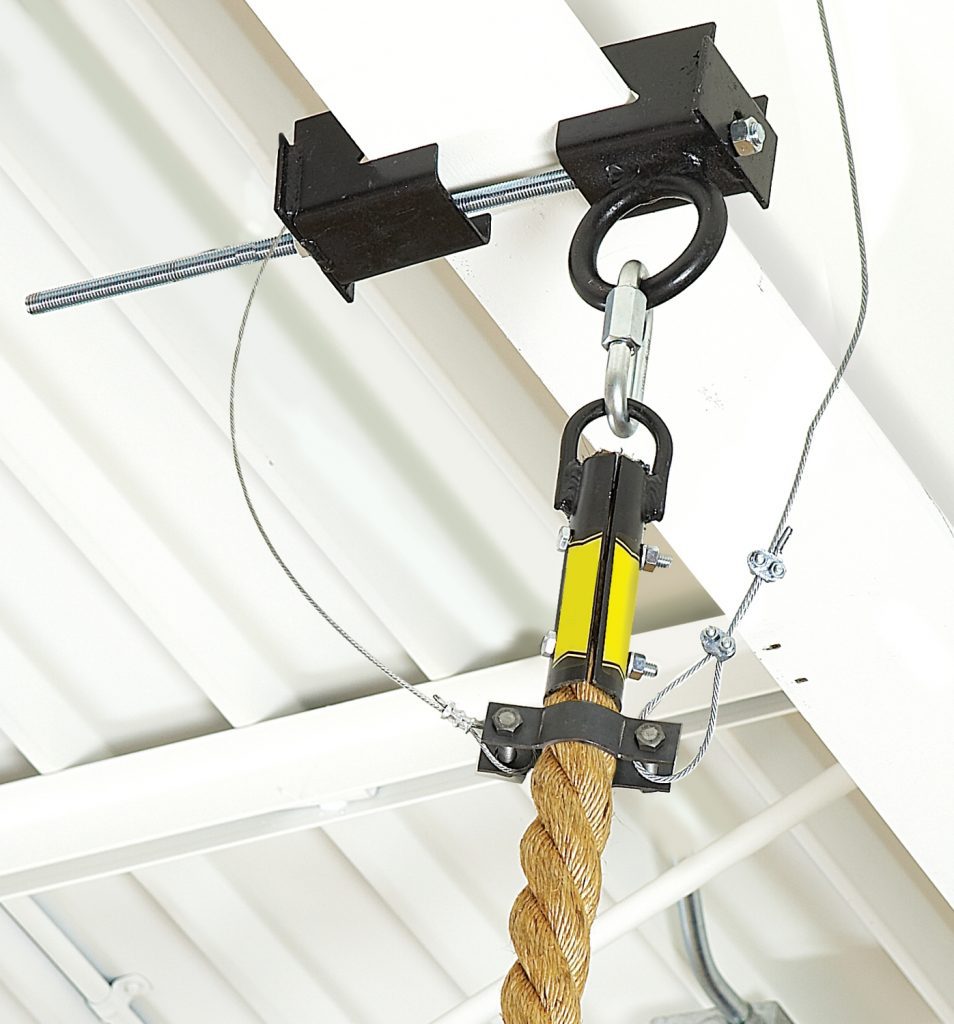

The SCA-1 Safety Cable Attachment is a safety feature for all climbing ropes that shall prevent the climbing rope from falling from the ceiling in the event of any failure of the attachment hardware and/or fittings. Jammar recommends the SCA-1 for all climbing ropes and can be installed on new or existing climbing ropes.

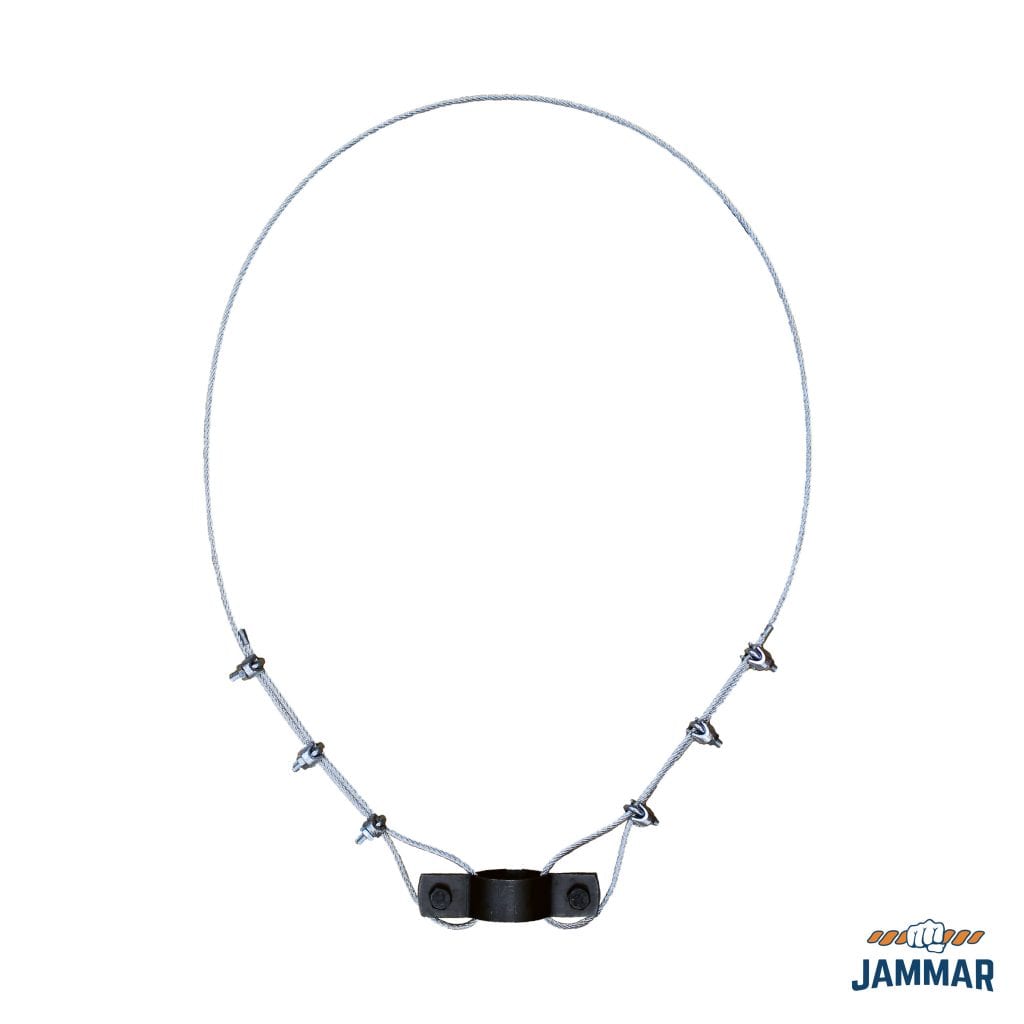

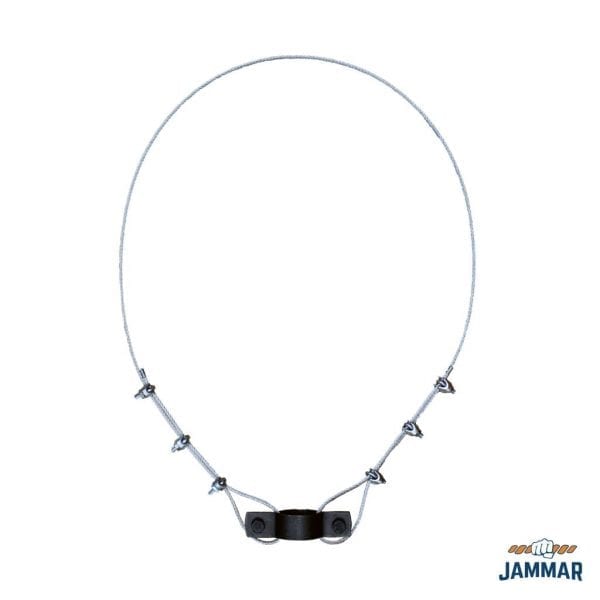

The SCA-1 is specifically fabricated to fit 1-1/2” diameter climbing ropes and is supplied with the brackets, hardware, 6′ of 1/8” aircraft cable, and 6 cable clamps. Custom sizes are also available for smaller or larger diameter climbing ropes. The SCA-1 can be easily installed by passing over or through the building structure and separate from the rope attachment hardware. For rigid frames or glu-lam beam applications, additional cable or hardware may be required.
The SCA-1 is specifically designed as a redundant safety feature and is NOT INTENDED for use as the primary suspension method. If a failure occurs and the SCA-1 is called into action, immediately stop and lock out all activities on the climbing rope until the climbing rope is repaired or replaced.
View and download:

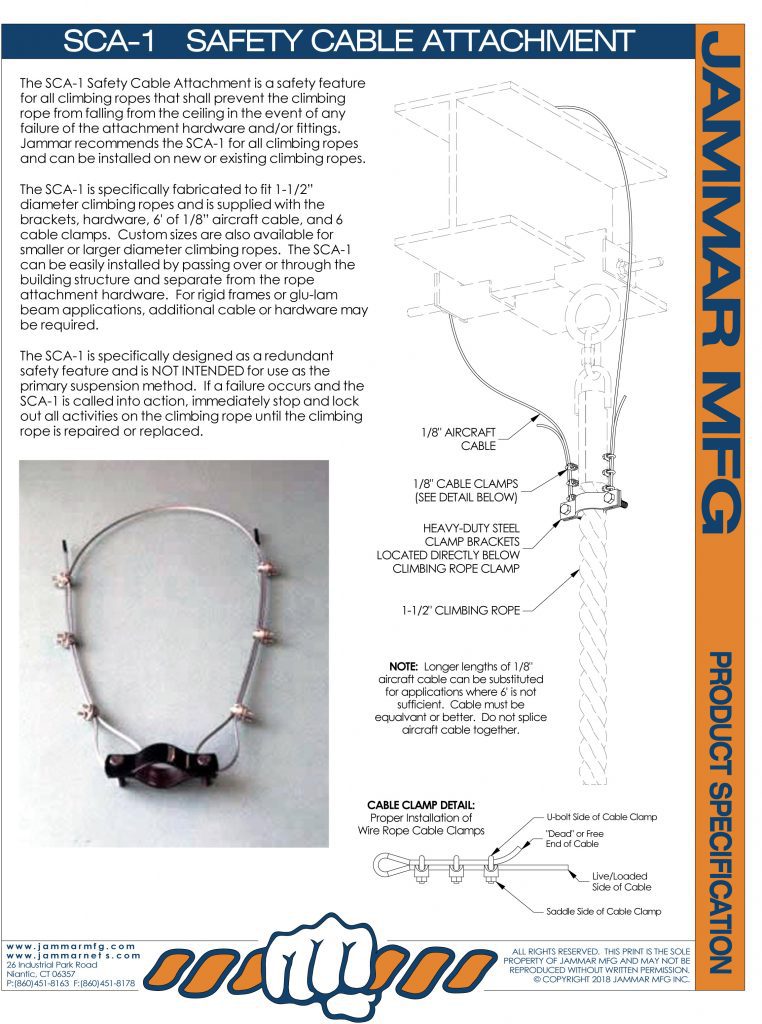

SCA-1 | Product Specifications
Jammar Price List
Dealer applications available
Rope Hanging Hardware & Accessories
| Product No | Product Name |
|---|---|
| A-1 | Wood Beam Hanger |
| A-2 | Pipe Clamp Hanger |
| A-312 | Adjustable Beam Clamp |
| A-312B | Dual Purpose Adjustable Beam Clamp | 3 1/2"-12"Length |
| A-4 | Wood Beam Clamp |
| A-5 | Concrete Beam Clamp |
| A-9 | Strap Rope Hanger |
| SCA-1 | Safety Cable Attachment |
| RN-1 | Rope Net Hoist |
| MLBH-1 | Rope Net Hoist/Metal Lock Box |
| TMB-20 | Climbing Rope Tambourine |
| L-1 | 1/2" Quick Link |
| L-38 | 3/8" Quick Link |
| CAS-1 | Chain Attachment Sling | 1' Chain w 1ea Link |
| CAS-2 | Chain Attachment Sling | 2' Chain w 2ea Link |
| CLEVIS-150 | Shackle For 1.5" Rope Thimble |
| CLEVIS-200 | Shackle For 2" Rope Thimble |
| SIGN-1 | Safety Signage |
