Stud Strap Hanger | A-9

$26.00

  • Heavy duty steel bolts onto wood beam from only side dimensions
  • Mounts to bottom corner of structurally safe wood beams
  • Best used with beams 4″ long
  • Does not feature horizontal stabilizer as the A-1

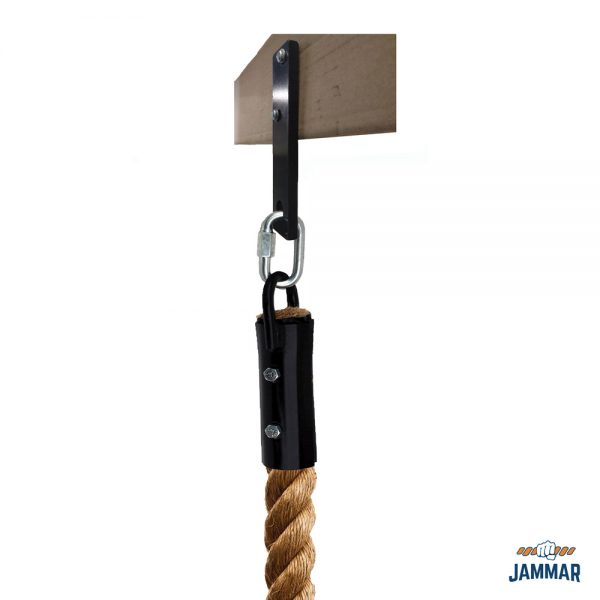

The Stud Strap Hanger (A-9) is a heavy duty steel bracket primarily used to hang individual climbing rope from wood beam structure. Each hanger is constructed of a 1/2″ steel plate. Hanger is supplied with a durable black finish. Hanger is intended for square wood beams 4″ long. All anchors are supplied by others.

These hangers are specifically designed to mount to horizontal beams and withstand vertical loading. These hangers are not intended for angled / sloped beams or with any equipment involving swinging. Please refer to the specific equipment installation instructions for the recommended number of hangers for each specific piece of Jammar equipment.

Climbing ropes and nets must be hung from structurally adequate structure which will exceed any load placed on the equipment. Most beams and ceiling framework in institutional buildings will meet this criteria, however, always confirm this with you architect, building plans, and / or structural engineering. Jammar is not responsible for the structural adequacy of the building structure.

Please note, this hanger is not considered a permanent fixture and requires periodic inspection to ensure top performance. Safe working load rating for the A-1 wood beam hanger is 1000 lbs.

  • Heavy duty steel bolts onto wood beam from only side dimensions
  • Mounts to bottom corner of structurally safe wood beams
  • Best used with beams 4″ long and at least one of the two mounting holes thru bolted
  • Does not feature horizontal stabilizer as the A-1
View and download:  Jammar Price List
Dealer applications available



Hanging Hardware

Wood Beam Hanger | A-1Pipe Clamp Hanger | A-2Adj Beam Clamp | A-312Wood Beam Clamp | A-4Concrete Beam Clamp | A-5Stud Strap Hanger | A-9Chain Attachment Sling | CAS-1Chain Sling Attachment | CAS-2

Climbing Rope Accessories

Rope Net Hoist | RN-1Rope Net Hoist/Metal Lock Box | MLBH-1Safety Cable Attachment | SCA-1Climbing Rope Tambourine | TMB-24Safety Sign



GENERAL POLICY

Additional information

Weight 5 lbs
