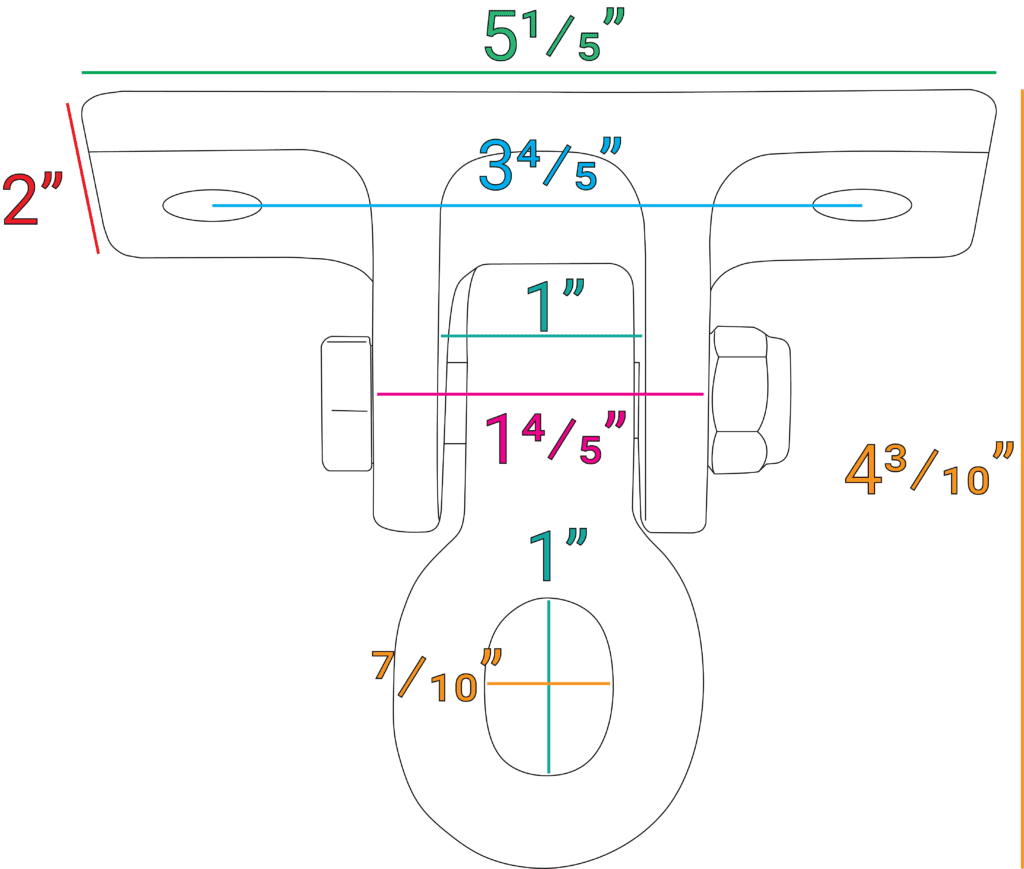

The SH105 is built to last, featuring a sturdy construction made of ductile iron and galvanized to resist rust. They have a .51 ID oil light bearing and axle bolt and are designed to be used on wooden swing frames. The plate measures 5 1/4 inches by 2 inches and has ½ inch holes that are 3 3/4 inches center to center. The hole ID is 1 inch top to bottom and ¾ inch side to side.

With a remarkable tensile strength of 10,000 lbs, these swing hangers are built to withstand heavy use and provide a safe and secure way to hang swings on wooden frames. Under optimal conditions, this product should last up to 5 years, even in harsh weather conditions. However, please note that some conditions may require replacement sooner. These swing hangers are sold individually.

Climbing ropes and nets must be hung from structurally adequate framework which will exceed any load placed on the equipment. Most beams and ceiling framework in institutional buildings will meet this criteria, however, always confirm this with you architect, building plans, and/or structural engineering. Jammar is not responsible for the structural adequacy of the building structure.

Features:

• Sturdy construction made of ductile iron and galvanized to resist rust
• Built to withstand heavy use and provide a safe and secure way to hang on wooden frames
• Easy connection to climbing ropes using Quick Link [L-12]
• Designed to mount to horizontal beams and withstand vertical loading
