Joist Hanging Bars | JHB

$192.00$371.00

  • Simple method for attaching climbing ropes, ladders, or cargo nets
  • Mounts directly to existing exposed ceiling or floor joists
  • 2″ x 9″ x 1/2″ thick heavy duty steel plate brackets
  • Standard width is 4′ – 8′ 10′ & 12′ available to customize your desired set-up
Clear

$192.00$371.00

Wall Mounted Hanging Bar
4ft Bar | 2 Brackets 8ft Bar | 3 Brackets 10ft Bar | 4 Brackets 12ft Bar | 4 Brackets
Clear selection

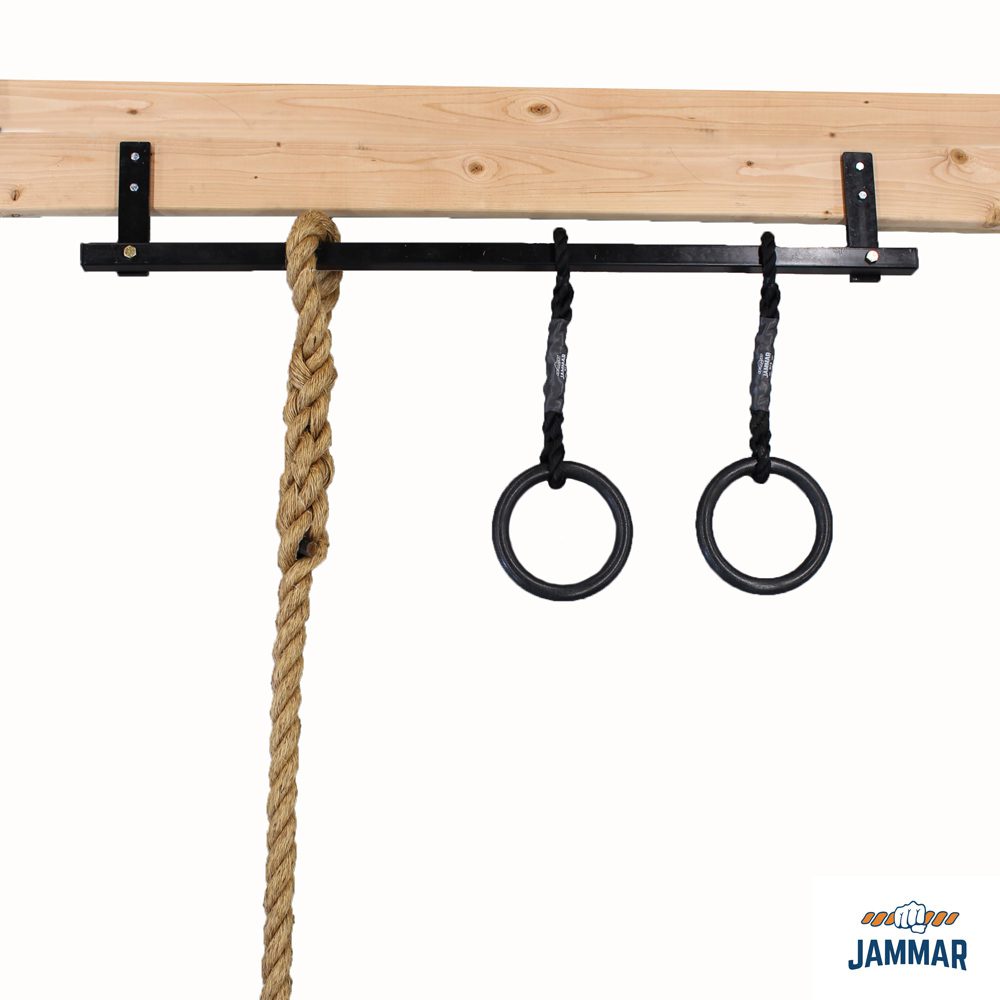

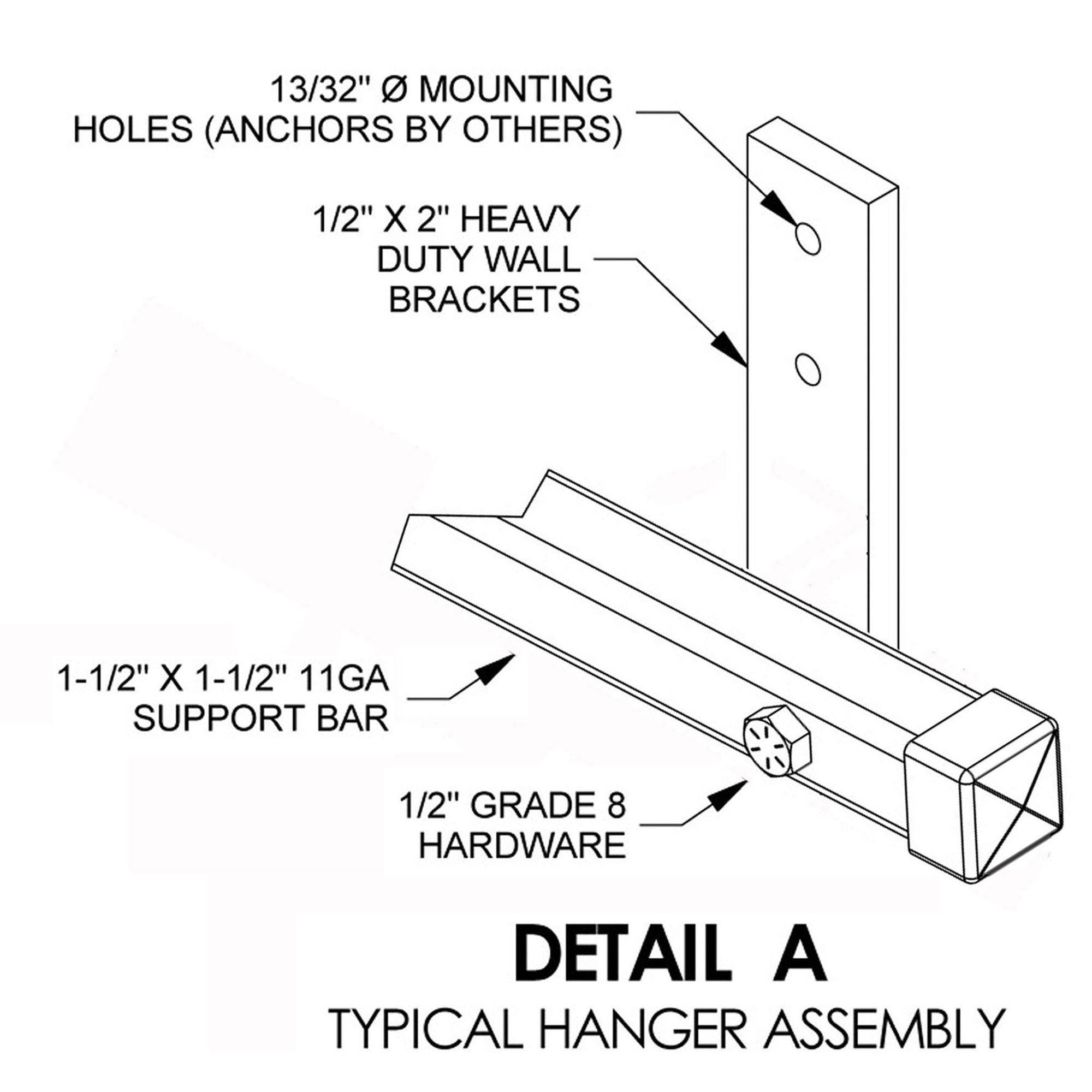

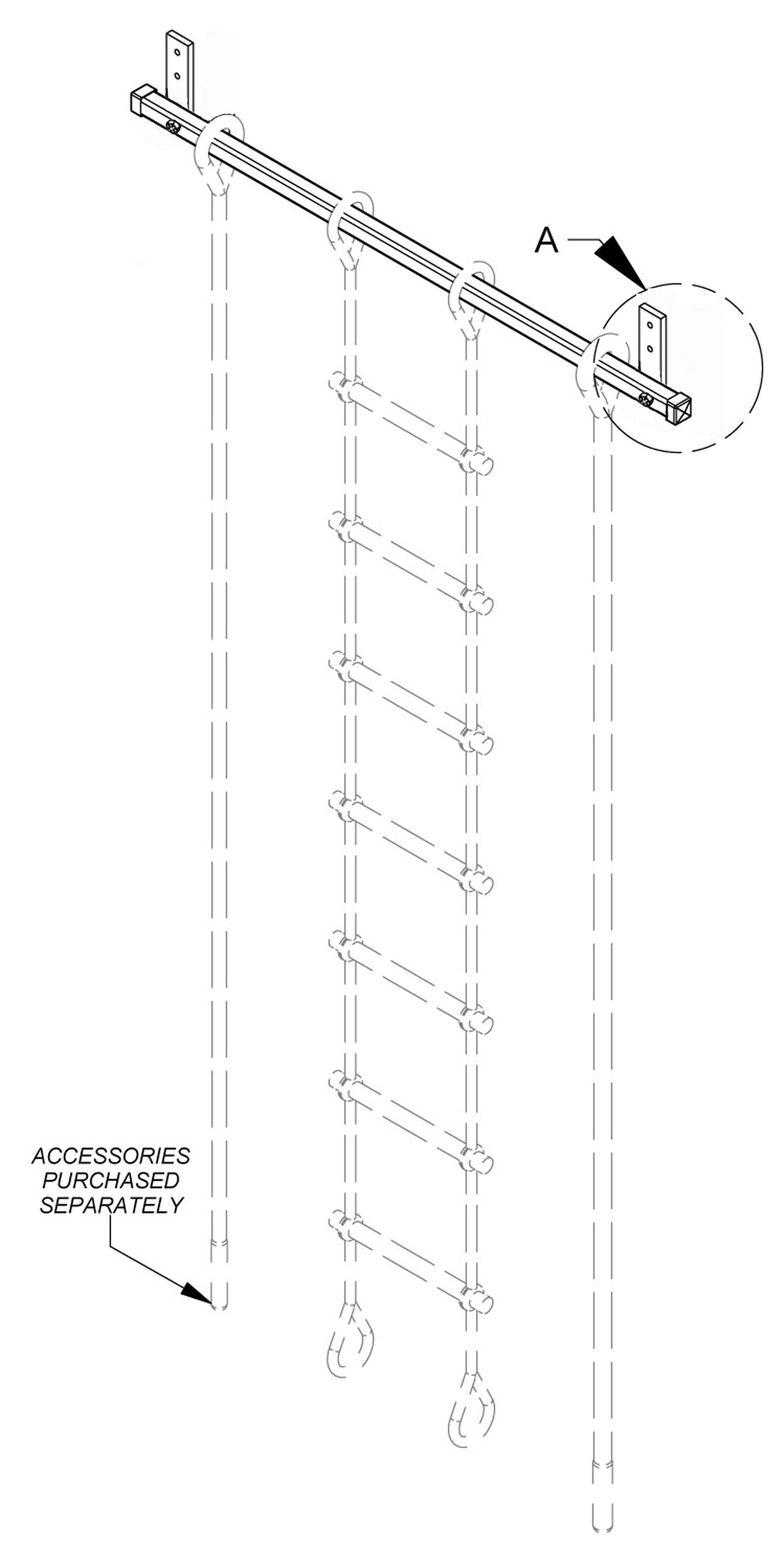

Our Joist Hanging Bars (JHB) can be attached to existing exposed ceiling or floor joists for hanging climbing nets, ropes, ladders, rings, etc. The JHB-4 consists of 1 ea 4’6″ long 1.25″ square steel bar with 2ea 1/2″ x 2″ x 9″ steel hanging brackets connected by Grade 8 1/2″ bolts. The hanging bar sits approximately 3″ below joist when installed.

Can also be custom ordered in 8′, 10′ and 12′ widths. Mounting hardware for standard joist included (1-1/2″). Ropes, nets, ladders, rings etc. must be ordered seperately. Visit each specific category on our website and call 860-451-8163 to order climbing equipment. We can custom make anything you need!

Climbing ropes and nets must be hung from structurally adequate structure which will exceed any load placed on the equipment. Jammar is not responsible for the structural adequacy of the building structure.

Please note, this hanger is not considered a permanent fixture and requires periodic inspection to ensure top performance. Safe working load rating for the JHB Series hanging bars is 1000 lbs.

Features:
  • Simple method for attaching climbing ropes, ladders, or cargo nets
  • Mounts directly to existing exposed ceiling or floor joists
  • 2″ x 9″ x 1/2″ thick heavy duty steel plate brackets
  • Standard width is 4′ – 8′ 10′ & 12′ available to customize your desired set-up

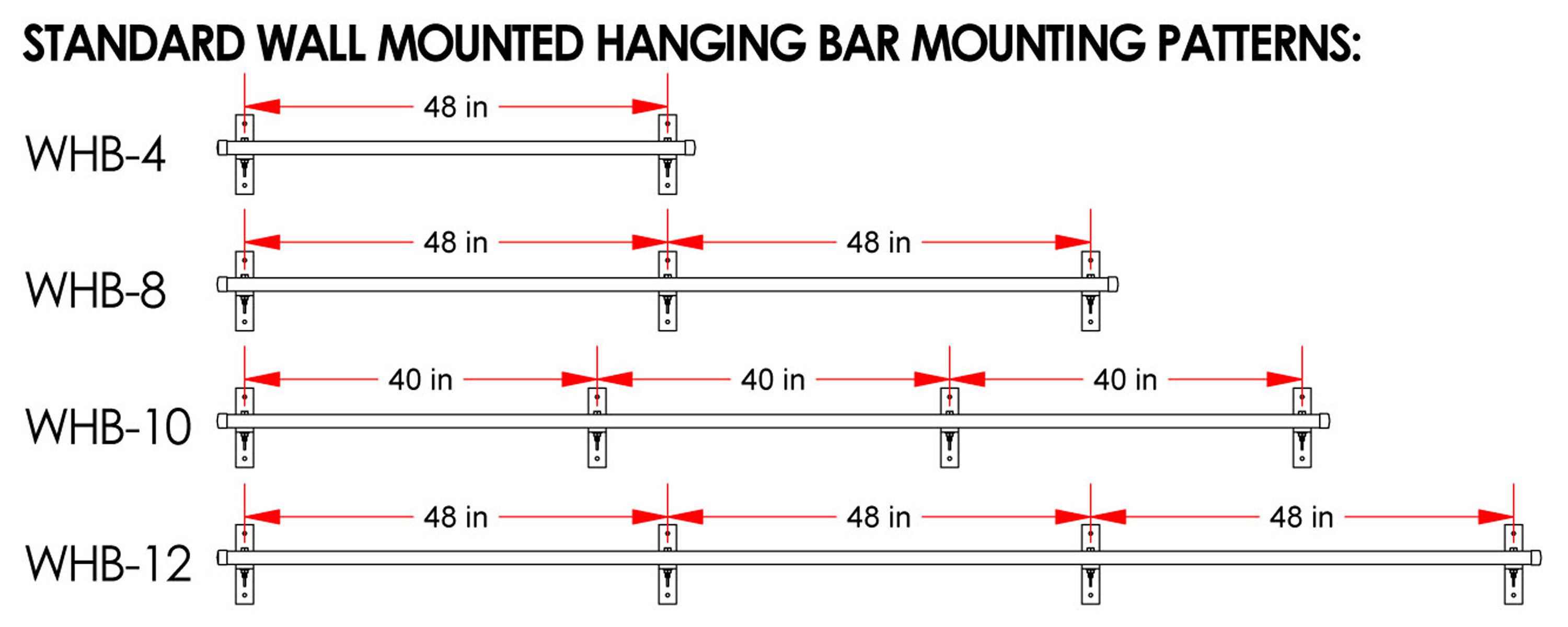

Hanging Bar Options
ItemDescription
JHB-44' 6" Bar w/ 2 Wall Brackets
JHB-88' 6" Bar w/ 3 Wall Brackets
JHB-1010' 6" Bar w/ 4 Wall Brackets
JHB-1212' 6" Bar w/ 4 Wall Brackets
Indoor nets are supplied with general installation instructions, care and use documentation. Any and all climbing activities require proper mats, spotting and supervision when using. Specific soft landing surfaces and supervision required and possible belaying for climbing heights over 8 feet. Mats are probably the single most important ingredient to any activity using equipment to prevent serious injuries when accidents may occur. Having several thick landing mats placed around nets will make instruction much easier and more innovative. These mats are versatile and can be used in many capacities.

Additional information

Weight N/A
Dimensions N/A
Wall Mounted Hanging Bar

4ft Bar | 2 Brackets, 8ft Bar | 3 Brackets, 10ft Bar | 4 Brackets, 12ft Bar | 4 Brackets

Add Climbing Net

No Climbing Net, 4' W x 8' H, 8' W x 8' H, 10' W x 8' H, 12' W x 8' H

Add Climbing Rope

No Climbing Rope, 1.25" Manila Rope | 8' Long, 1.25" Poly Dacron | 8' Long, 1" Manila Rope | 8' Long, 1" Poly Dacron | 8' Long

Add Rope Ladder

No Rope Ladder, All-Purpose Rope Ladder | 8' Long
