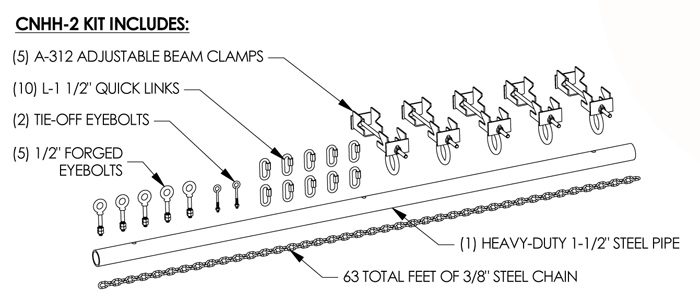

The CNHH-2 Cargo Hanging Bar Kit is a support assembly to suspend a 10′, 12′, 14′, or 18′ wide indoor cargo net along a continuous beam. The hanging bar is suitable for both CN and HD Series Cargo Nets. The CNHH-2 comes equipped with a single heavy duty 1-1/2” steel pipe specific to the width of the net being installed, five 1/2” forged eyebolts, and two tie-off eyebolts. All holes are factory drilled and ready for easy assembly with no drilling or cutting necessary. Pipes are supplied with a durable black finish.

The CNHH-2 also comes equipped with five A-312 heavy duty beam clamp assemblies, ten 1/2″ quick links, and 63′ of 3/8″ steel chain to suspend the bar assembly from a standard beam structure. Jammar offers alternative methods of attachment if the CNHH-2 does not meet the necessary requirements. Contact Jammar for additional information.

Features:

• Same as the CNHH-1 except it substitutes a one piece, preassembled bar specific to 10′, 12′ or 14′ size net
• Assembly able to suspend up to 10′ from ceiling beam
• Please specify beam to floor measurement & width of net when ordering
• Include any special requirements
• Ships truck only
