Description

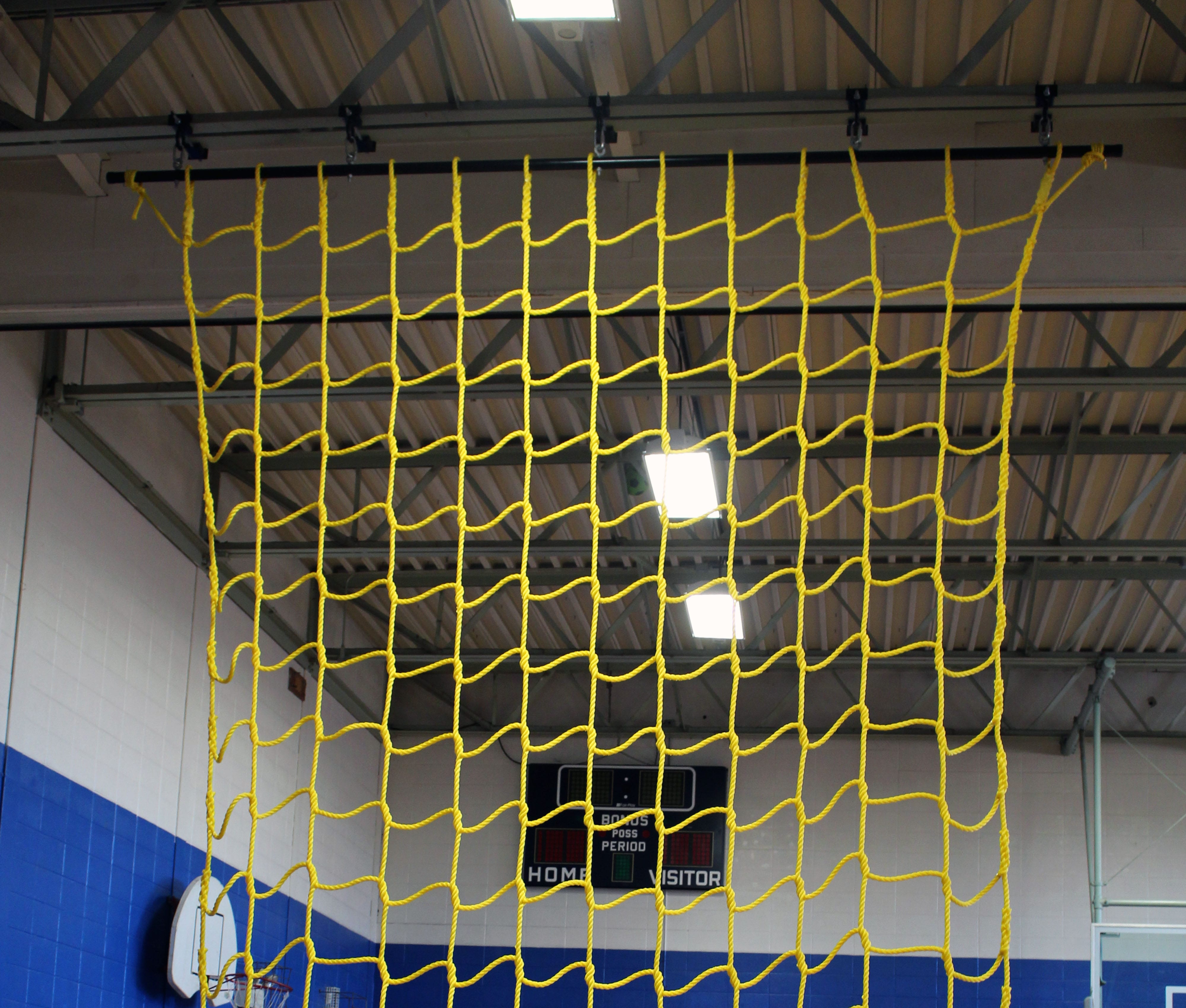

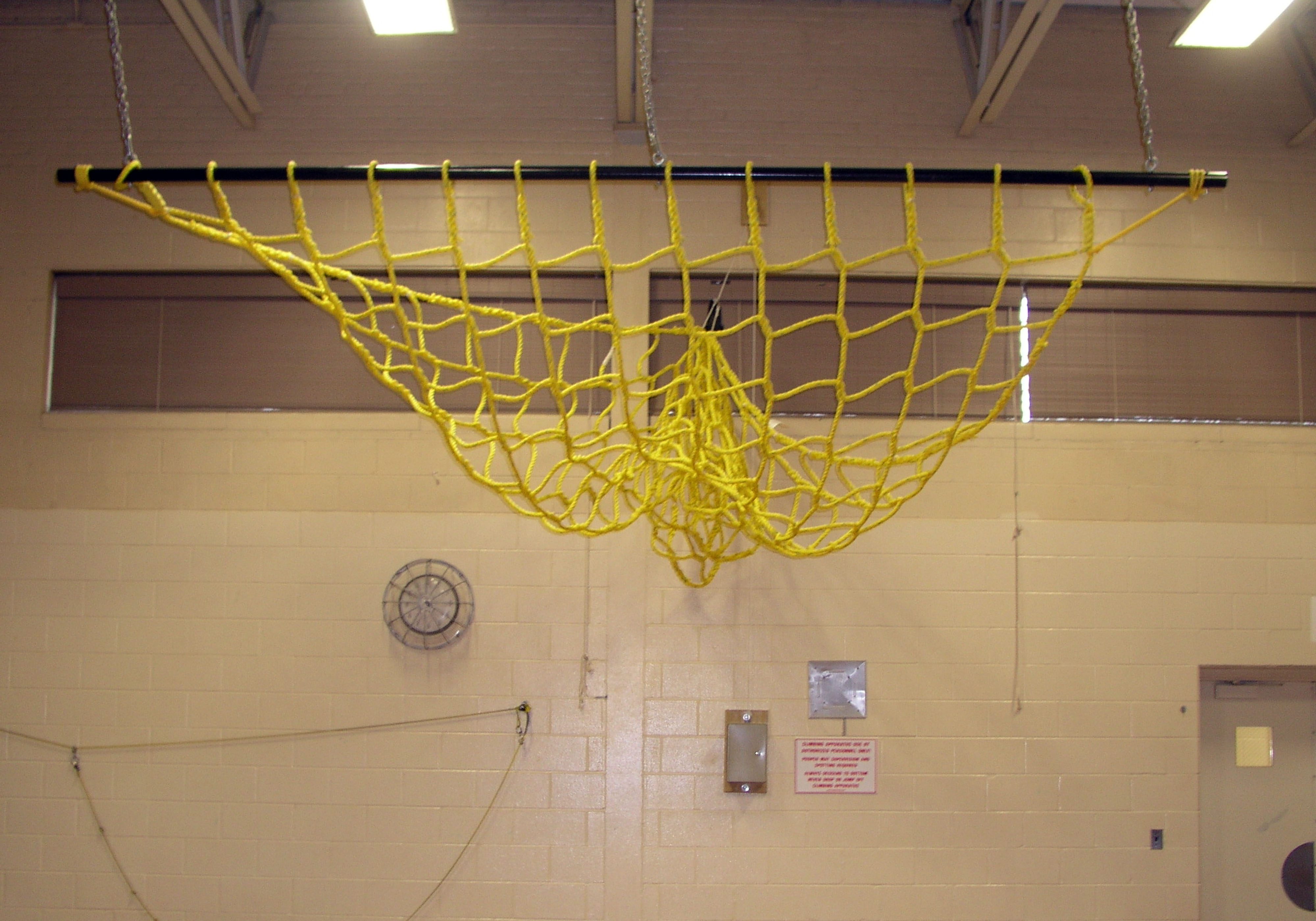

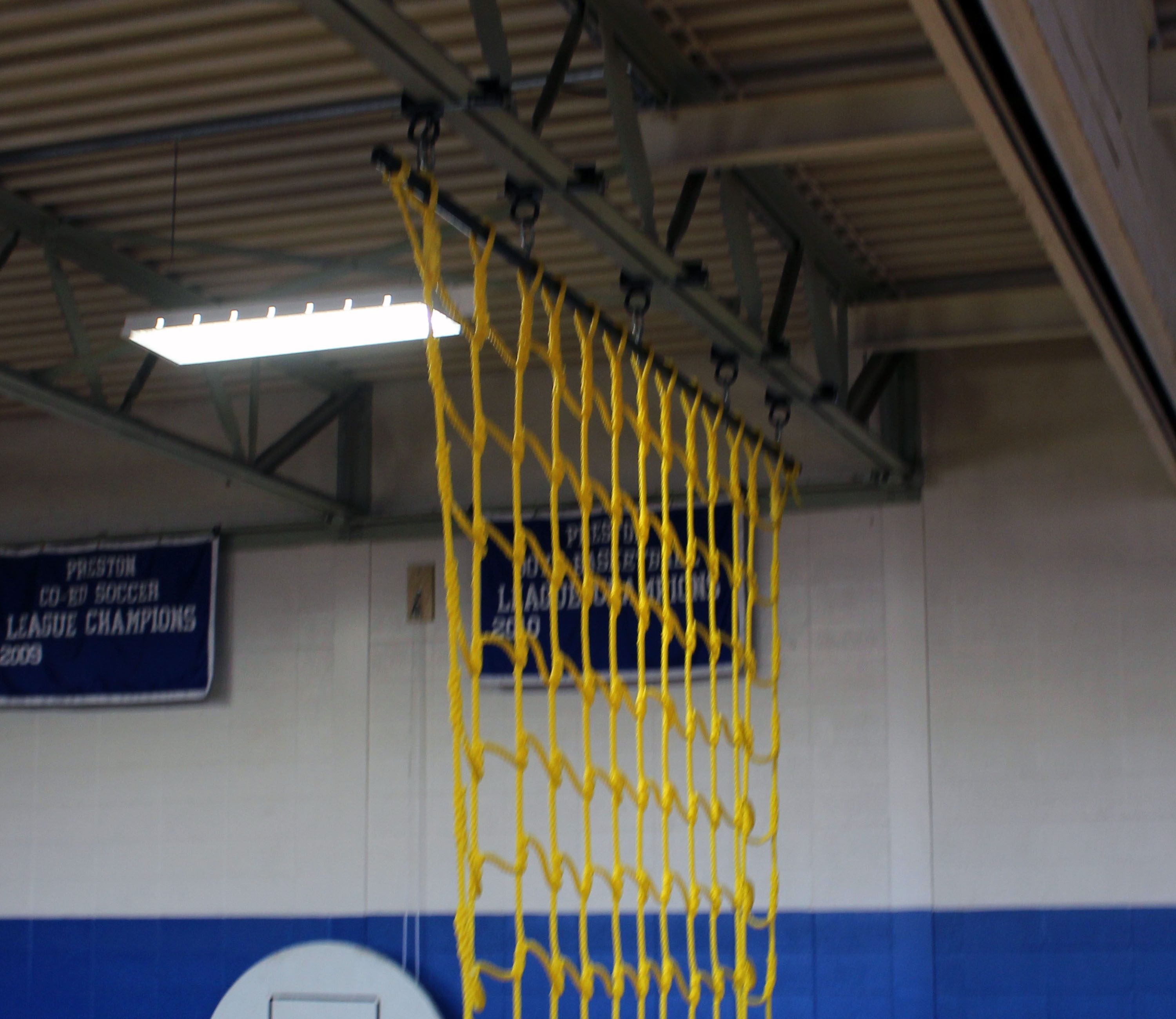

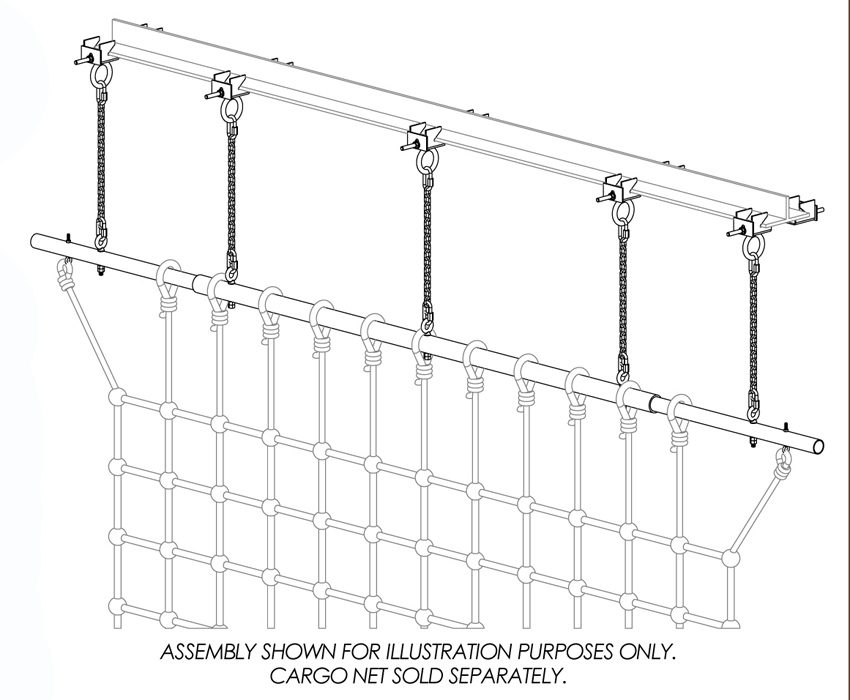

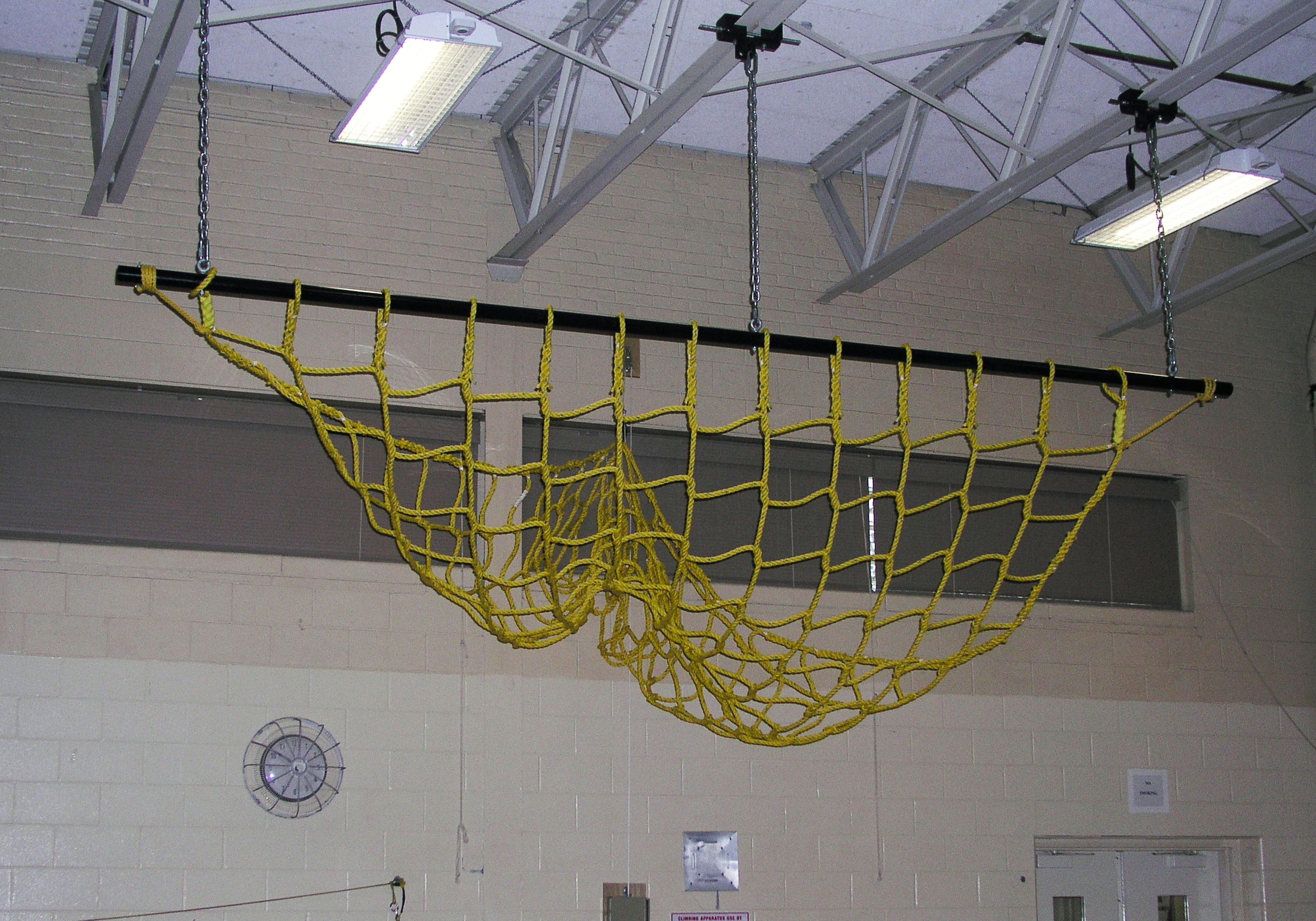

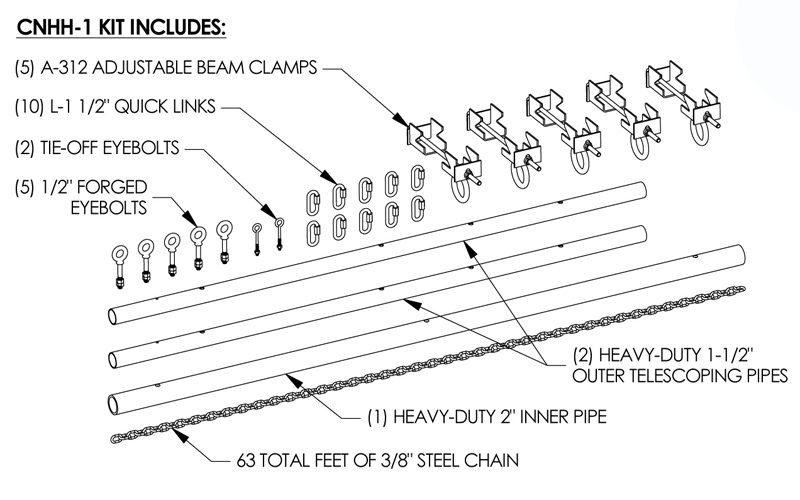

The CNHH-1 Universal Cargo Net Hanging Bar Kit is a universal telescoping support assembly to suspend a 10′, 12′, or 14′ wide indoor cargo net along a continuous beam. The hanging bar is suitable for both CN and HD Series Cargo Nets. The CNHH-1 comes equipped with a bar assembly comprised of two heavy wall 1-1/2” outer steel pipes, one heavy wall 2” inner steel pipe, five 1/2” forged eyebolts, and two tie-off eyebolts. All holes are factory drilled and ready for easy assembly with no drilling or cutting necessary. Pipes are supplied with a durable black finish.

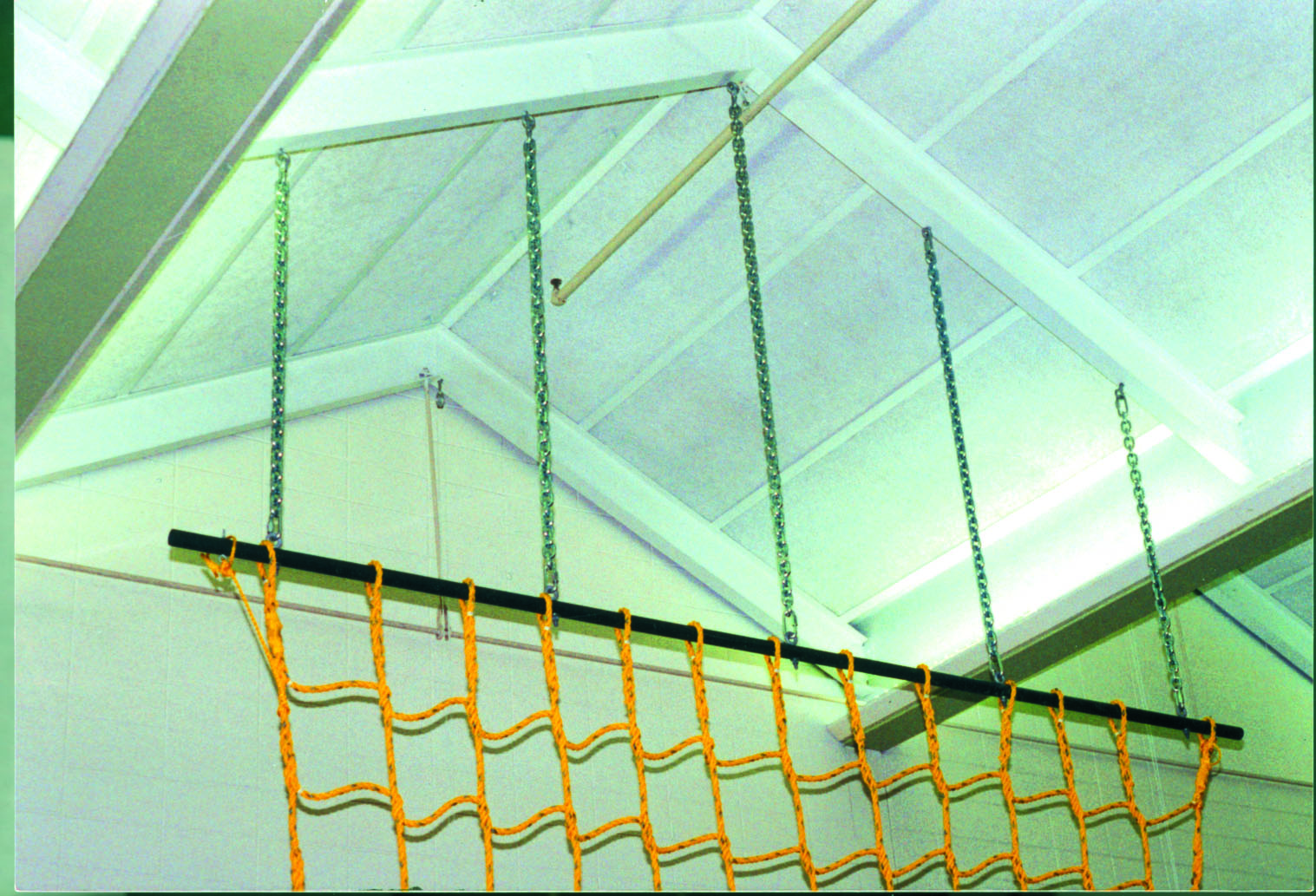

The CNHH-1 also comes equipped with five A-312 heavy duty beam clamp assemblies, ten 1/2″ quick links, and 63′ of 3/8″ steel chain to suspend the bar assembly from a standard beam structure. Jammar offers alternative methods of attachment if the CNHH-1 does not meet the necessary requirements. Contact Jammar for additional information.

Features:

Telescoping assembly able to suspend up to 10′ from ceiling beam
Includes Universal Hanging Bar | UHB-1014
Adaptable to 10′, 12′, and 14′ wide nets
Include any special requirements

Cargo Net Hanging Hardware Package 1 | CNHH-1 Product Specifications

Indoor nets are supplied with general installation instructions, care and use documentation. Any and all climbing activities require proper mats, spotting and supervision when using. Specific soft landing surfaces and supervision required and possible belaying for climbing heights over 8 feet. Mats are probably the single most important ingredient to any activity using equipment to prevent serious injuries when accidents may occur. Having several thick landing mats placed around nets will make instruction much easier and more innovative. These mats are versatile and can be used in many capacities.
