Corner Mounted Hanging Bars | CHB

$202.00

  • Simple method for attaching climbing ropes, ladders, or cargo nets
  • Utilize space by mounting directly in the corner of a structural wall
  • 1/2″ thick heavy duty welded brackets
  • Standard bar width is 4′ with a height of 8′ above the finished floor
  • Standard accessories sold separately
Clear

$202.00

Wall Mounted Hanging Bar
4ft Bar | 2 Brackets
Clear selection

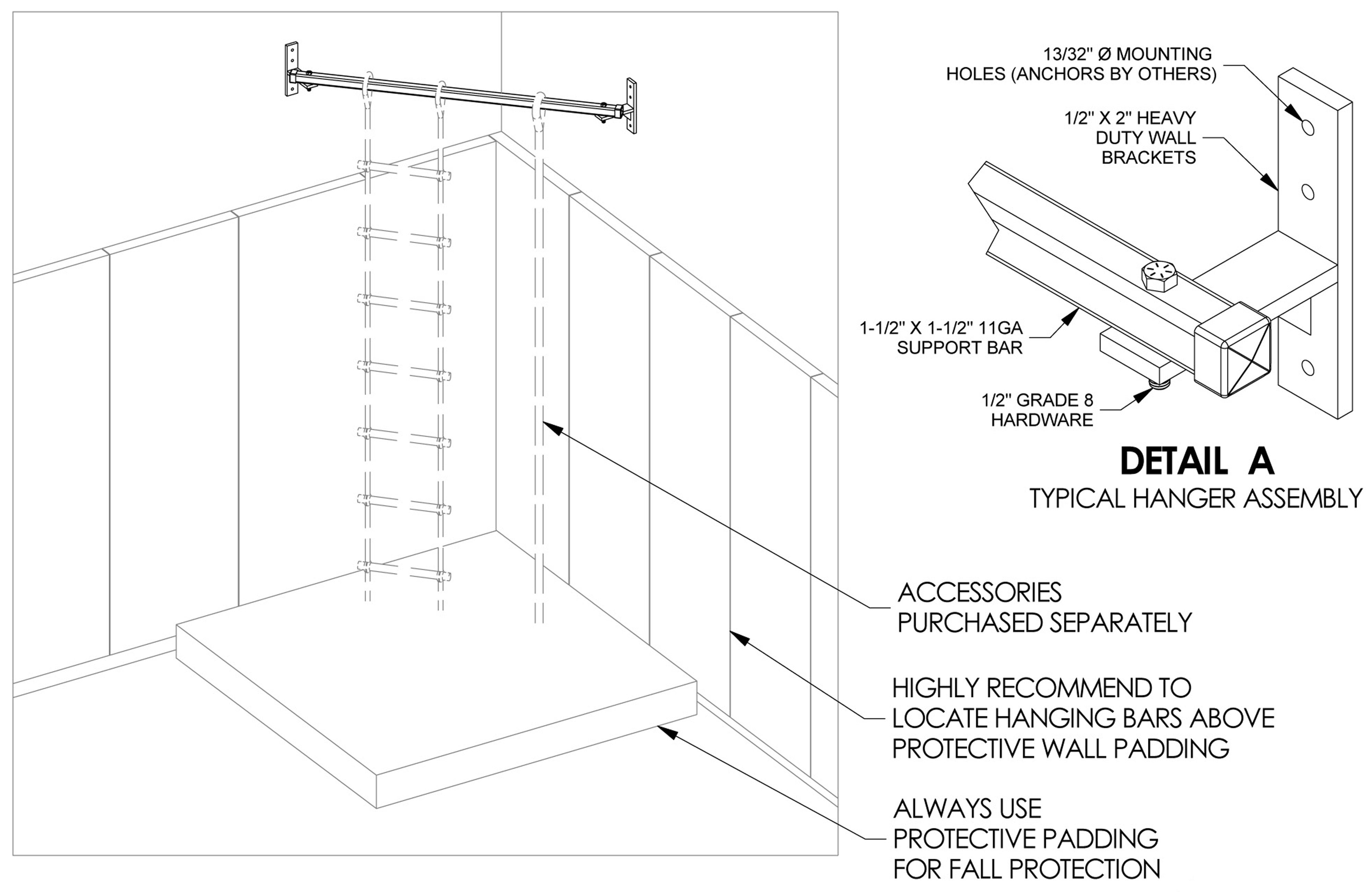

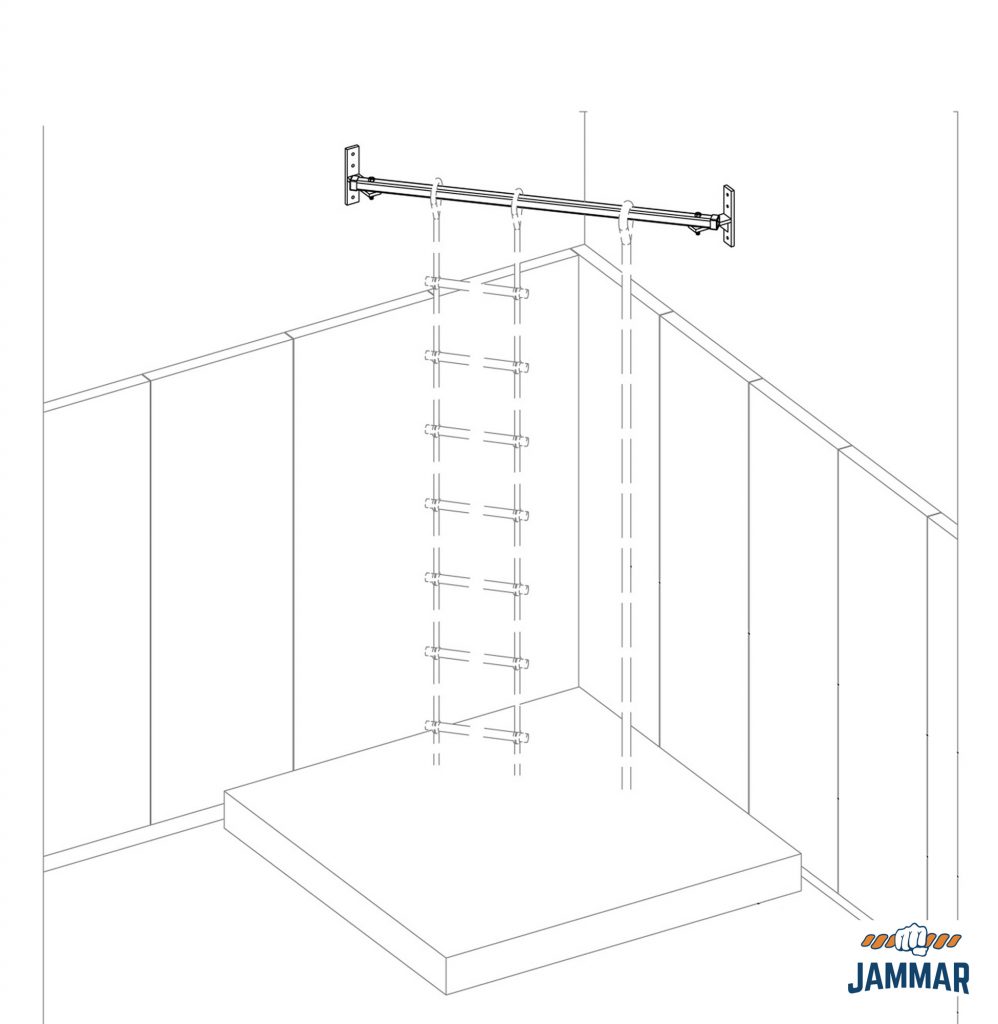

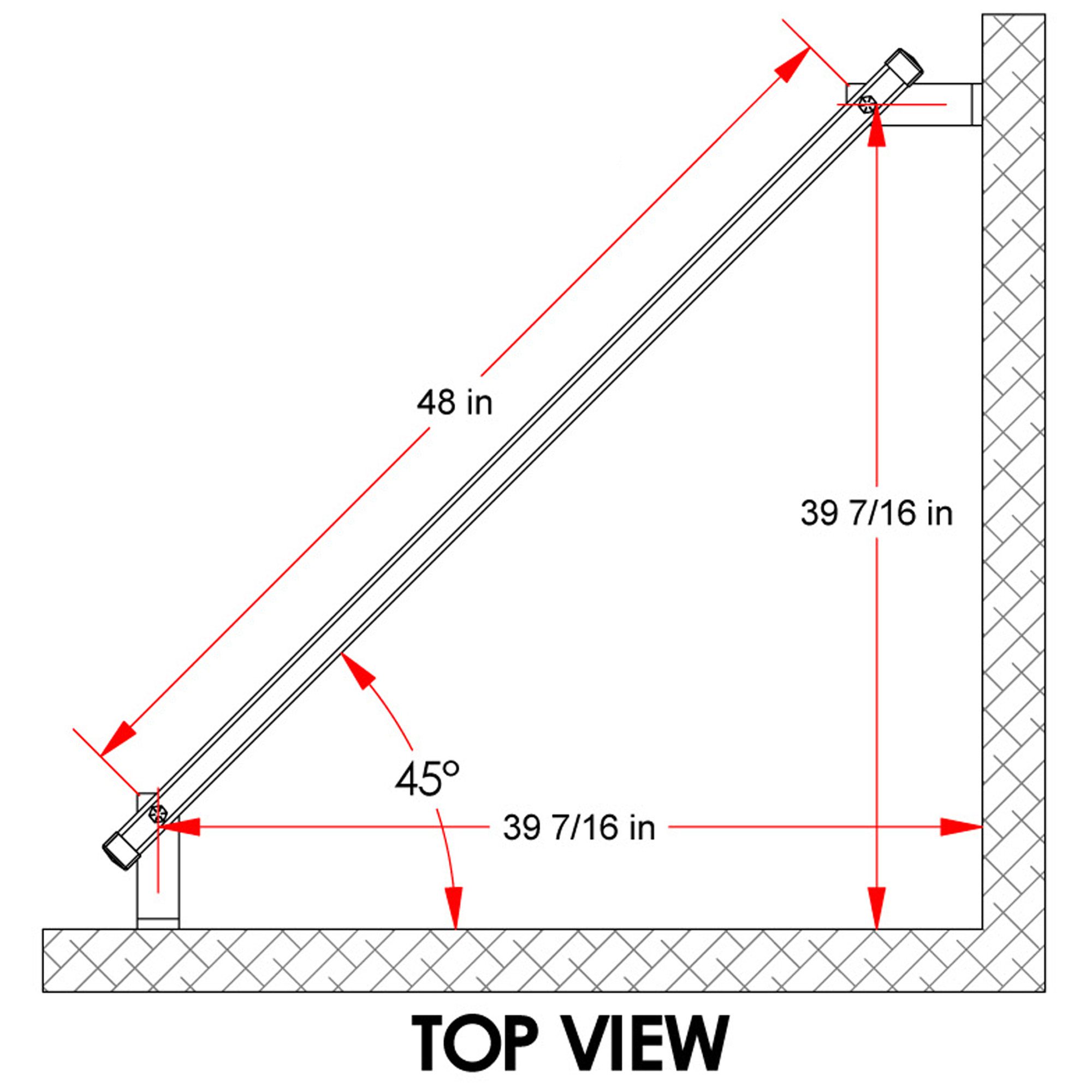

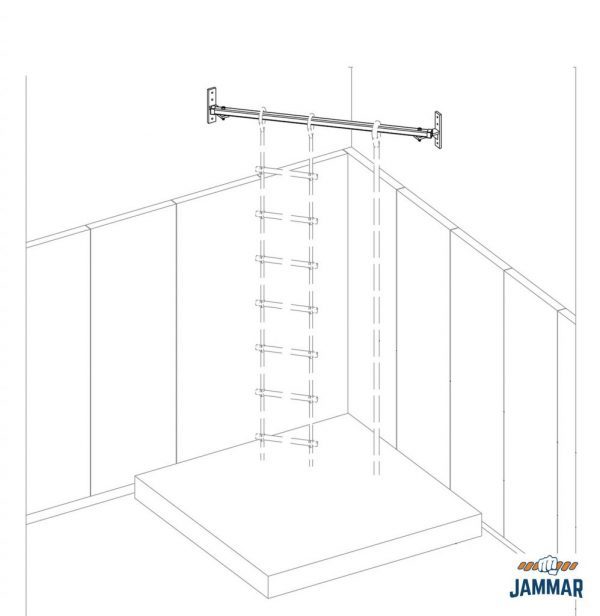

The Corner Mounted Hanging Bars (CHB) Series is a simple method for attaching climbing ropes, ladders, or cargo nets for younger, beginner level climbers. The CHB series mounts directly in the corner of a structural wall with a recommended attachment height of 8′ above the finished floor. The hanging bar assembly attaches to a structural wall utilizing 1/2″ thick heavy duty welded brackets. Each bracket is attached to the wall with three anchors, specified and supplied by others. The support bar is constructed of 1-1/2″ x 1-1/2″ 11 gauge steel and is thru-bolted to the wall brackets using 1/2″ Grade 8 hardware.

The CHB Series is 4′ wide and completely customizable with your desired set-up. The number of accessories per hanging bar assembly is determined by the customer. Allow for 18-24″ minimum spacing from accessory to accessory. Climbing cargo nets can be oriented vertically or at an angle. Angled cargo nets are custom and require floor anchors. Custom support bars and custom accessories available upon request. Standard accessories listed below and sold separately.

Features:
  • Simple method for attaching climbing ropes, ladders, or cargo nets
  • Utilize space by mounting directly in the corner of a structural wall
  • 1/2″ thick heavy duty welded brackets
  • Standard bar width is 4′ with a height of 8′ above the finished floor
  • Standard accessories sold separately
Hanging Bar Options
ItemDescription
WHB-44' 6" Bar w/ 2 Wall Brackets
WHB-88' 6" Bar w/ 3 Wall Brackets
WHB-1010' 6" Bar w/ 4 Wall Brackets
WHB-1212' 6" Bar w/ 4 Wall Brackets
Climbing Net Options
ItemMesh SizeNet Size
WPP9-3/4-4X89"4' W x 8' H
WPP9-3/4-8X89"8' W x 8' H
WPP9-3/4-10X89"10' W x 8' H
WPP9-3/4-12X89"12' W x 8' H
Climbing Rope Options
ItemRope Size
Dia.
Rope MaterialDescription
WCF2-100-M-81"Manila8' x 1" Manila Rope
WCF2-100-W-81"Poly Dacron8' x 1" Poly Dacron Rope
WCF2-125-M-81.25"Manila8' x 1.25" Manila Rope
WCF2-125-W-81.25"Poly Dacron8' x 1.25" Poly Dacron
Rope Ladder Options
ItemSpacingDescription
WRL12-812"8' Long, All-Purpose Rope Ladder
Indoor nets are supplied with general installation instructions, care and use documentation. Any and all climbing activities require proper mats, spotting and supervision when using. Specific soft landing surfaces and supervision required and possible belaying for climbing heights over 8 feet. Mats are probably the single most important ingredient to any activity using equipment to prevent serious injuries when accidents may occur. Having several thick landing mats placed around nets will make instruction much easier and more innovative. These mats are versatile and can be used in many capacities.

Additional information

Weight N/A
Dimensions N/A
Wall Mounted Hanging Bar

4ft Bar | 2 Brackets, 8ft Bar | 3 Brackets, 10ft Bar | 4 Brackets, 12ft Bar | 4 Brackets

Add Climbing Net

No Climbing Net, 4' W x 8' H, 8' W x 8' H, 10' W x 8' H, 12' W x 8' H

Add Climbing Rope

No Climbing Rope, 1.25" Manila Rope | 8' Long, 1.25" Poly Dacron | 8' Long, 1" Manila Rope | 8' Long, 1" Poly Dacron | 8' Long

Add Rope Ladder

No Rope Ladder, All-Purpose Rope Ladder | 8' Long
