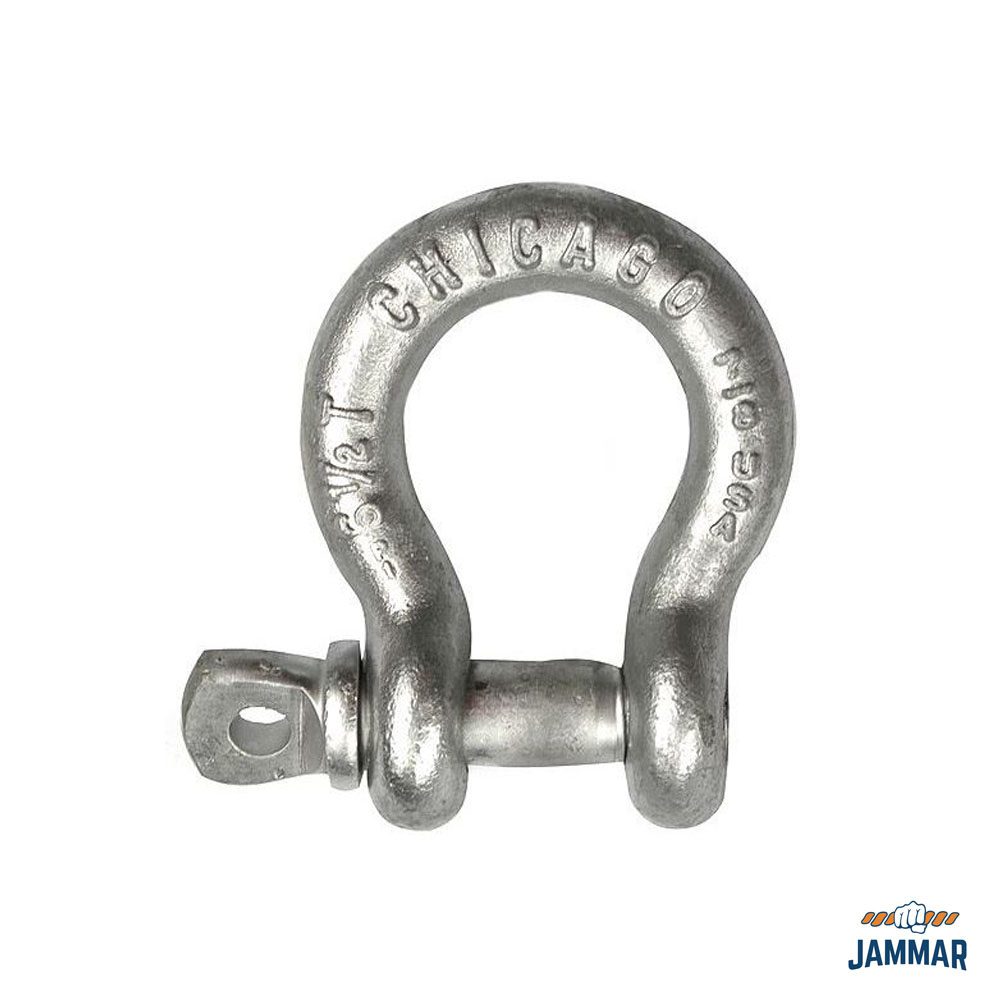

Screw Pin Anchor Shackle

$28.00$37.00

  • Drop forged carbon steel body | Alloy steel pins
  • Heat treated galvanized body & pin
  • Loads are based on a safety factor of 6:1
  • Size and working load limit embossed on every shackle
  • Meets or exceeds all requirements of ASME B30.26
  • Meets Federal Specification RR-C-271D Type IVA Class 2
Clear

$28.00$37.00

Hardware Size
7/8in Shackle | 1.25" & 1.5" dia Climbing Ropes 1in Shackle | 2" dia Climbing Ropes
Clear selection
Features:
  • Drop forged carbon steel body | Alloy steel pins
  • Heat treated galvanized body & pin
  • Loads are based on a safety factor of 6:1
  • Size & working load limit embossed on shackle
  • Meets or exceeds all requirements of ASME B30.26
  • Meets Federal Spec RR-C-271D Type IVA Class 2

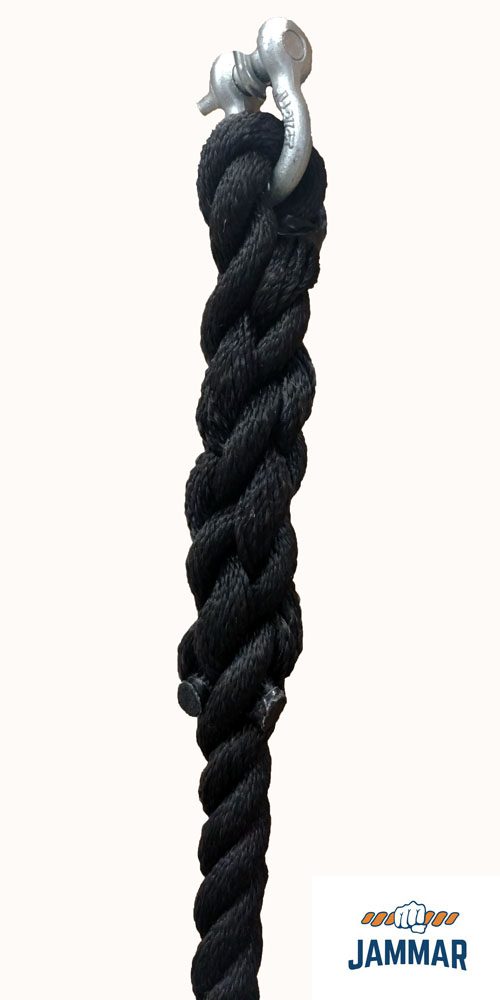

  • 1.25″ & 1.5″ dia ropes – 7/8″ dia shackle
  • 2″ dia ropes – 1″ dia shackle
Shackles MUST be specified & ordered before splicing any rope or metal thimble eye. Shackle will not fit on climbing rope after any fabrication.
Any deviations such as angular lifts, shock loads, modification of the basic forging, etc., will result in drastically reduced working load limits.

Additional information

Weight N/A
Dimensions N/A
Hardware Size

7/8in Shackle | 1.25" & 1.5" dia Climbing Ropes, 1in Shackle | 2" dia Climbing Ropes
