Fall Protection Nets | 9in Mesh

$550.00$3,000.00

  • Premium 3-strand twisted spun polyester (poly Dacron) rope
  • 9″ x 9″ mesh, triple weave non-slip intersections
  • Available in 1/2″, 5/8″ or 3/4″ diameter rope
  • Superior performance and exceptional service life
  • Excellent UV resistance

$550.00$3,000.00

Rope Diameter
This option is required
1/2in 5/8in 3/4in
Rope Color
This option is required
White White Poly Dacron Black Black Poly Dacron Tan Tan Poly Dacron Red Blue
Border Option
This option is required
Loops Top & Bottom Loops on 2 Sides Rope Border 4 Sides Rope Border 4 Sides
Net Size
This option is required
10' W x 10' H 15' W x 15' L 20' W x 20' L
Clear selection
SKU: FP9 Series Category:

Description

When challenging yourself with a new climbing experience, safety must always be your absolute priority. Many times proper spotting and adequate ground base can be enough to heed any major issues but when dealing with heights and angles that could increase the chance of falls. When this arises it might be wise to install a fall protection net to your systems plans.

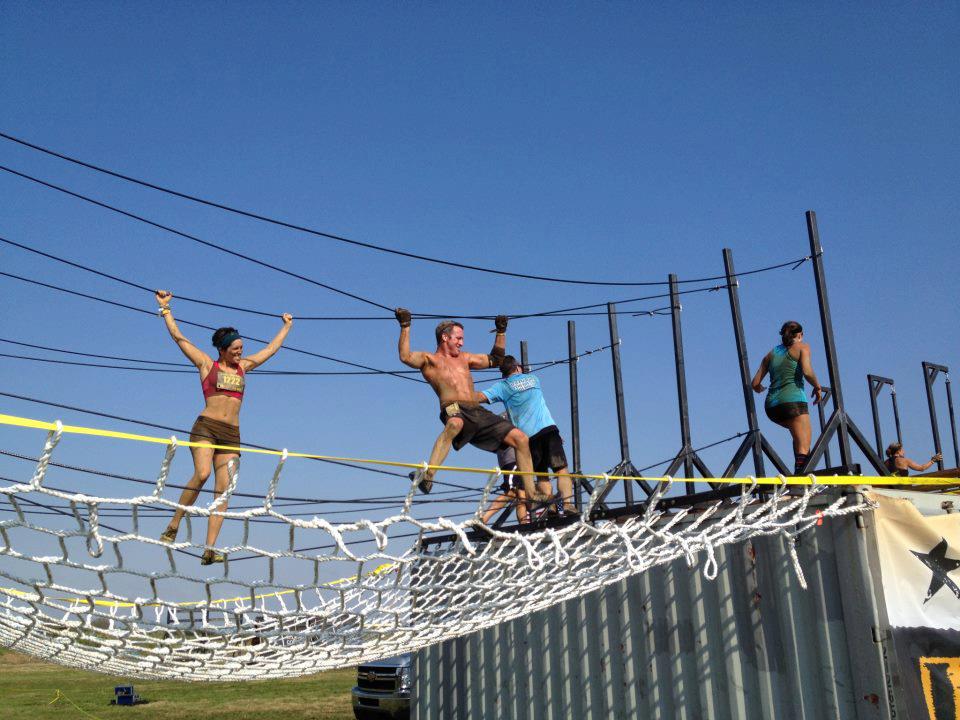

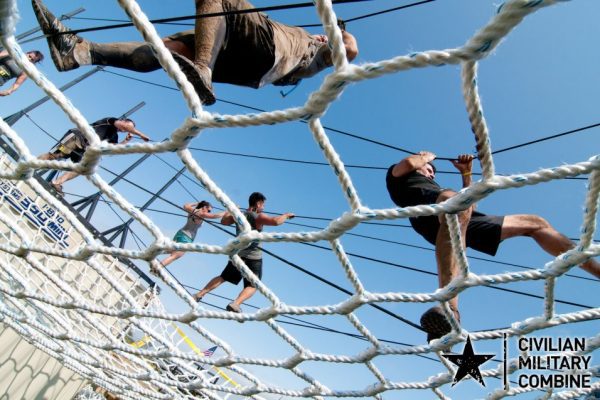

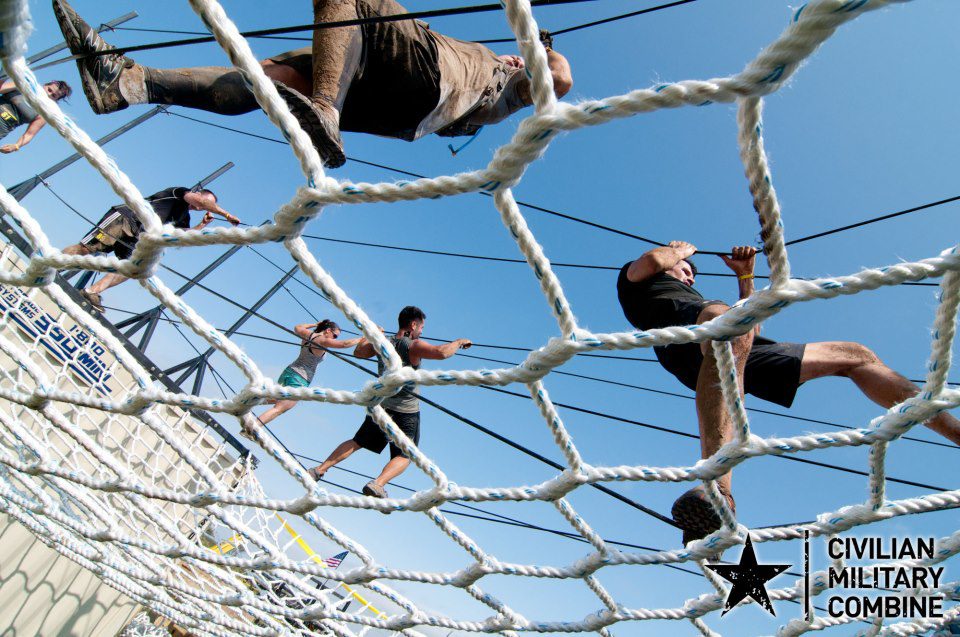

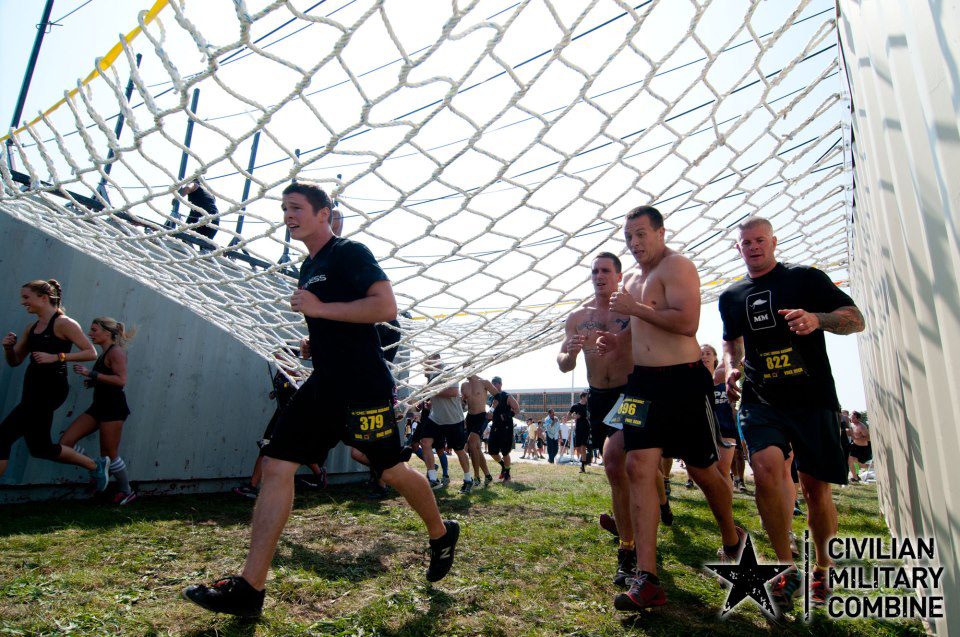

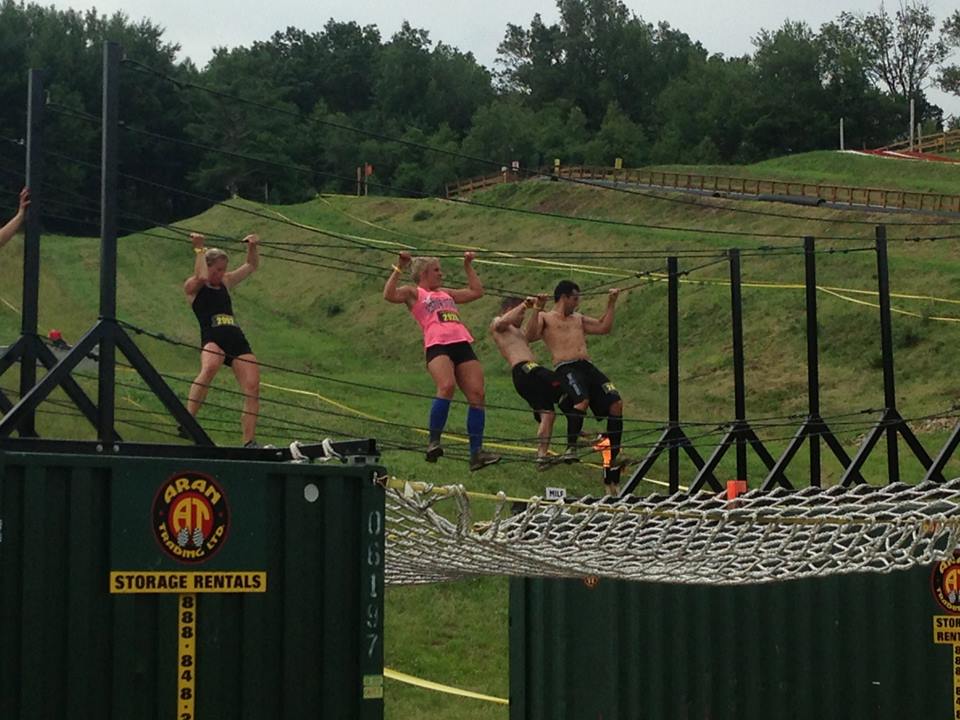

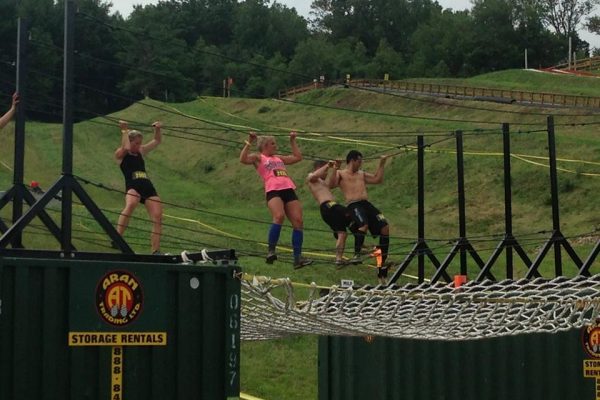

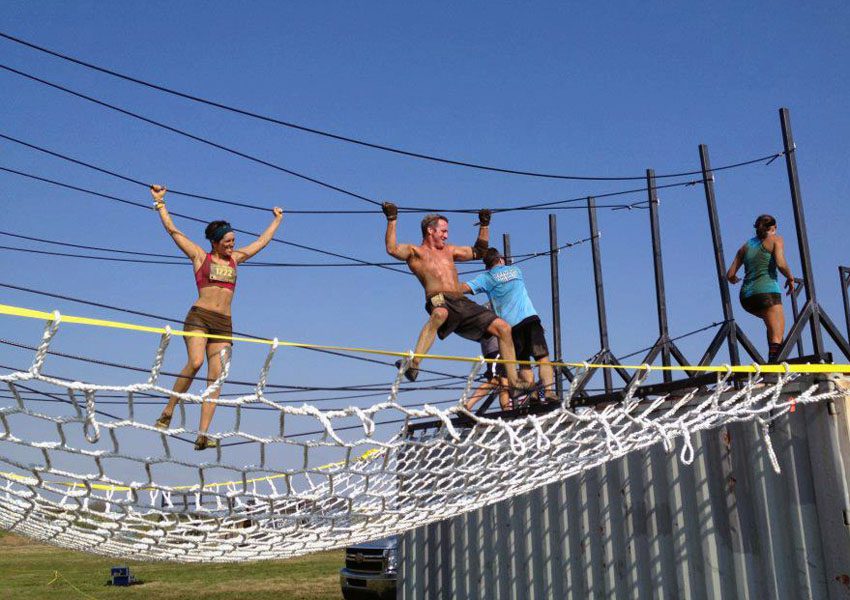

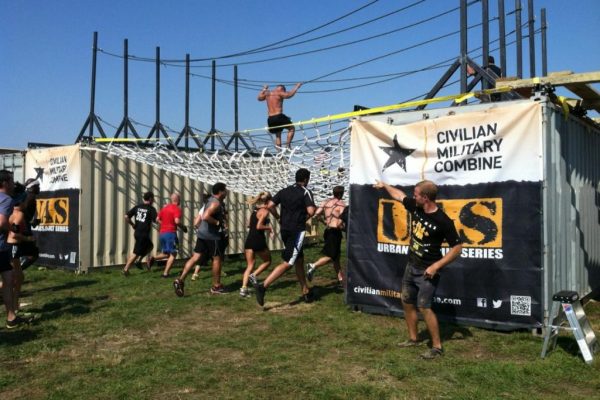

Jammar can fabricate 4″, 6″ or 9″ square mesh nets for use horizontally as fall protection nets under high obstacles. Nets are made from any of our 1/2″, 5/8″ or 3/4″ diameter 3-strand twisted ropes. Nets are finished with either a rope border on all 4 sides, using a larger diameter rope than the mesh for added strength, or loops on top and bottom for easy installation. Custom hardware can be added at strategic attachment points or all along perimeter for cable attachment.

Features:
  • Premium 3-strand twisted spun polyester (poly Dacron) rope
  • 9″ x 9″ mesh, triple weave non-slip intersections
  • Available in 1/2″, 5/8″ or 3/4″ diameter rope
  • Superior performance and exceptional service life
  • Excellent UV resistance
About Jammar’s Climbing Nets:

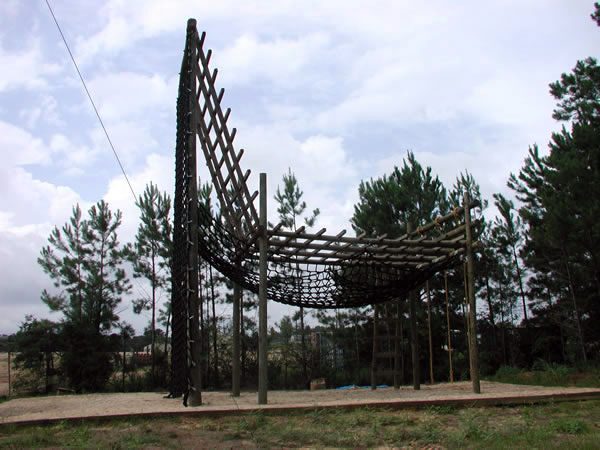

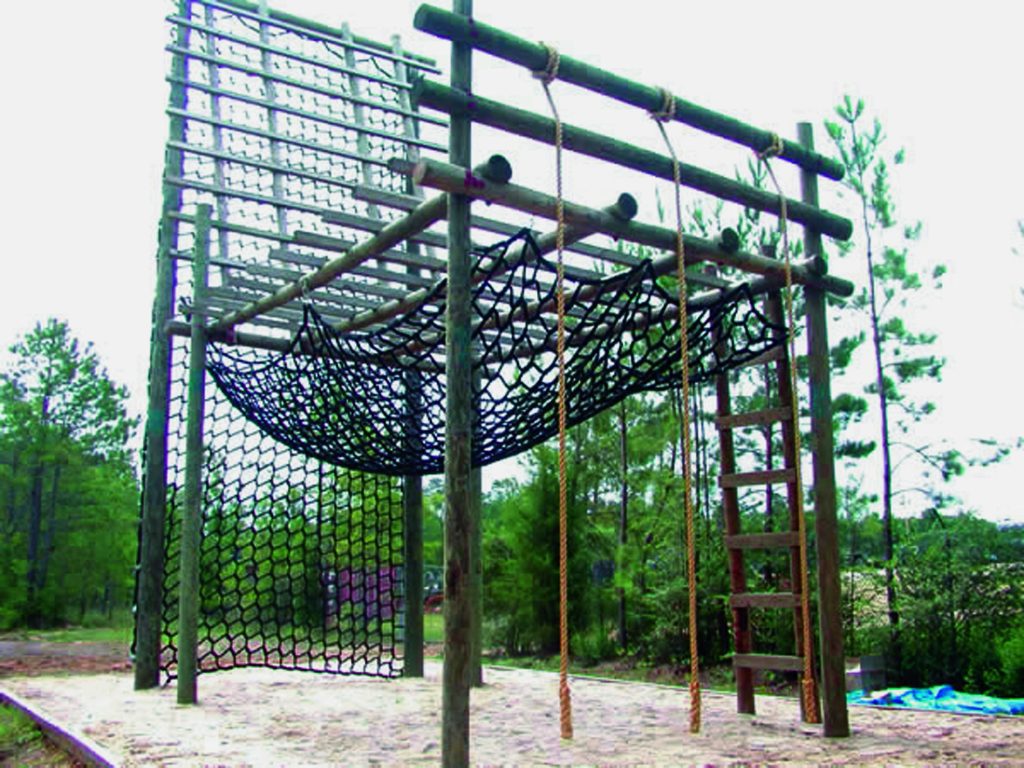

Jammar can fabricate a cargo net to fit any structurally safe play structure or specially designed framework. For best results measure inside dimensions of framework width and height and deduct 1 foot from each dimension. This leaves 6” on each side for attachment and to keep net off ground. Sizes are approximate and may stretch when weight is applied. When ordering specify net type, mesh size, rope diameter, border option, and size. Climbing nets are easy to install and are long lasting when attached with smooth, nonabrasive hardware and properly installed and maintained.

All nets comply with National Playground Safety Standards for mesh size and locking mesh junctions. Special consideration must be given to safe heights, safe use and the management of a soft surface under climbing equipment. Do not jump or drop off any net. Safe play area required. Suggested installation and use instructions sent with each order.

Sizes are approximate and custom-made nets are nonreturnable. Wide variety of styles and shapes available.

Fall Protection Nets

Product NoMesh SizeMesh
Rope Dia
Border
Rope Dia
Tensile Strengths
(Breaking)
FPOC-4-1/24in1/2in5/8in8,000 LBS
FPOC-4-5/84in5/8in3/4in10,800 LBS
FPOC-6-1/26in1/2in5/8in8,000 LBS
FPOC-6-5/86in5/8in3/4in10,800 LBS
FPOC-6-3/46in3/4in1in16,500 LBS
FPOC-9-1/29in1/2in5/8in8,000 LBS
FPOC-9-5/89in5/8in3/4in10,800 LBS
FPOC-9-3/49in3/4in1in16,500 LBS

Additional information

Weight N/A
Dimensions N/A
Net Size

10' W x 10' H, 15' W x 15' L, 20' W x 20' L

Net Mesh | Fall

4in

Rope Diameter

1/2in, 5/8in, 3/4in

Rope Color

White, Black, Tan, Red, Blue

Border Option

Loops Top & Bottom, Rope Border 4 Sides
