Description

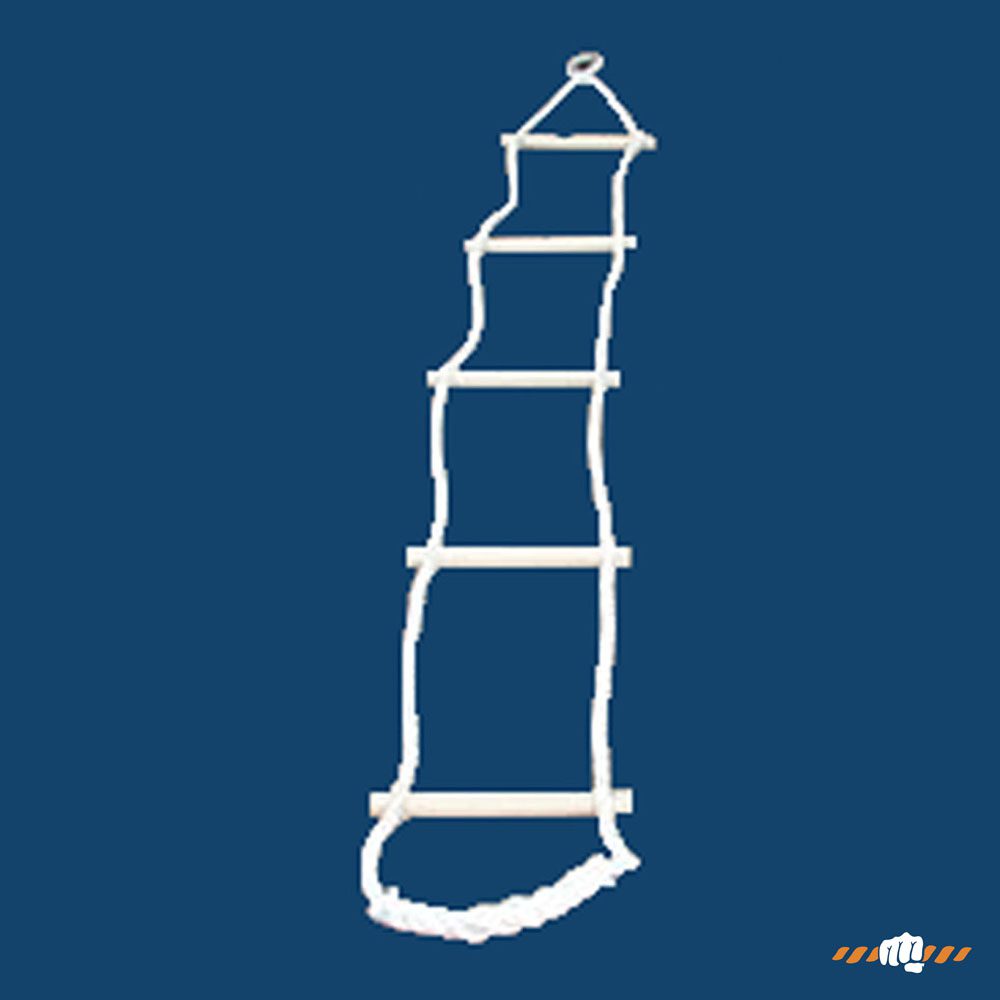

Jammar’s rope course ladders are constructed using 3/4″ diameter premium poly Dacron rope (Multiline II) with 12” notched 1.25″ diameter American hickory hardwood dowels. 12 ply waxed nylon lashed intersections, woven on and spaced at 18″ intervals. A single galvanized metal eye thimble on top for attachment and single spliced rope eye on bottom for anchoring. Metal can be removed upon request for a metal-free ladder.
- 1.25″ diameter American hickory hardwood dowels notched at 12″
- 12 ply waxed nylon lashed intersections, woven on and spaced at 18” intervals
- Single galvanized metal eye thimble spliced on the top for attachment
- Single spliced rope eye on bottom for anchoring
- Very challenging rope course ladder
Recommended Safe Working Load (SWL):
250 lbs per step | 1000 lbs per ladder
About Jammar Rope Ladders:
Jammar fabricates several styles of rope ladders. We use a premium poly Dacron rope selected for its hard lay twist and superior strength and weather resistance. We also use domestic 1-1/4″ hickory hardwood dowels. Dowels are lashed only using a waxed nylon twine. Safe working load should be considered 250 lbs with the exception of the firecracker ladder which is 200 lbs SWL. Up to 8 foot ladders are priced at the 8 foot charge and please add the appropriate ‘per foot’ charge for ladders over 8 feet. Sizes are approximate.
| Product No | Product Name | Description | Width | Spacing | SWL |
|---|---|---|---|---|---|
| RLS-1812 | Step Style Rope Ladder | 1.25" dia x 15in hardwood dowels | 18in | 12in | 250 LBS |
| RL-1512 | Multi-Purpose Rope Ladder | 2.25" dia x 18in white oak slats | 15in | 12in | 250 LBS |
| RLEC-1212 | Economy Rope Ladder | 1.25" dia x 12in PVC or hardwood dowels | 12in | 12in | 250 LBS |
| RCL-918 | Rope Course Ladder | 1.25" dia x 12in hardwood dowels | 12in | 18in | 200 LBS |
| FL-1218 | Firecracker Ladder | 1.25" dia x 12in PVC dowels, 1/2" dia rope | NA | 12in | 250 LBS |
| SL-12 | Stirrup Rope Ladder | 3/4" dia rope stirrup steps | 12in | 12in | 200 LBS |
Rope ladders are supplied with general installation instructions, care and use documentation. Ladders intended for vertical ascent and descent. Use other than intended may be hazardous and is prohibited. Any and all climbing activities require proper mats, spotting and supervision when using. Specific soft landing surfaces and supervision required and possible belaying for climbing heights over 8 feet. Mats are probably the single most important ingredient to any activity using equipment to prevent serious injuries when accidents may occur. Having several thick landing mats placed around nets will make instruction much easier and more innovative. These mats are versatile and can be used in many capacities.
Sizes are for pricing purposes only and all ladders are custom made and non returnable. Custom sizes available.
For further information regarding Jammar equipment and products please contact your dealer or call us at 1-860-451-8163
